305-060-556-212

Edgeboard Connectors Overview

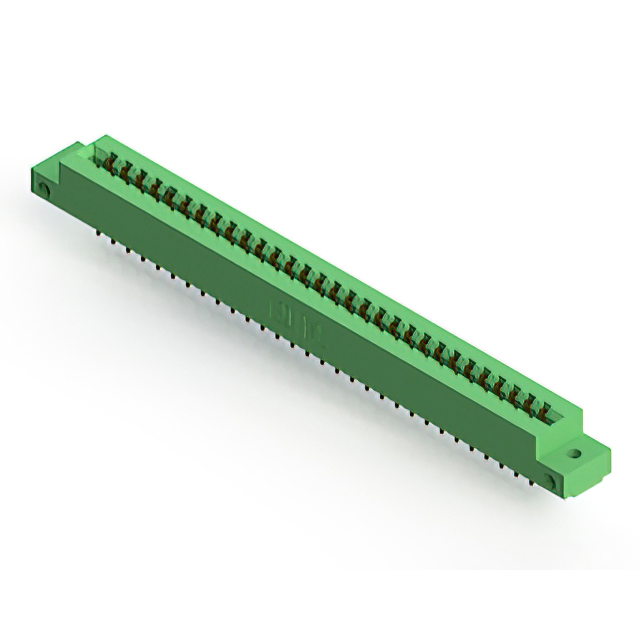

The EDAC Inc. 305-060-556-212 is a standard card edge connector from the 305 series, designed for dual female contact configurations with 60 positions. It features a 3.96 mm (0.156 inch) contact spacing and accepts printed circuit boards with a nominal thickness of 1.57 mm (0.062 inch). The connector utilizes gold-plated copper alloy contacts and solder pin termination methods. It is constructed with a UL 94V-0 thermoplastic polyester insulator and operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure board retention
• Gold-plated copper alloy contacts for reliable conductivity
• Thermoplastic polyester insulator body rated UL 94V-0
• Solder pin termination for panel mounting applications

Edgeboard Connectors Applications

• Panel-mounted electronic assemblies requiring dual-sided card edge connection
• Industrial control systems utilizing 1.57 mm thick PCBs
• High-reliability communication equipment interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC datasheet to ensure correct contact plating, row configuration, and mounting style compatibility. Confirm that the target PCB thickness aligns with the 1.57 mm nominal specification before procurement. Check current availability status as lead times may vary by region.

Edgeboard Connectors Selection Notes

Select this component when a dual-row, 60-position interface is required with a 3.96 mm pitch. Ensure the design accommodates the vertical panel mount orientation and solder pin termination method. Validate that the operating environment falls within the specified -40°C to 105°C temperature range for optimal performance.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting options, characterized by low-profile insulator bodies and robust contact structures suitable for demanding industrial environments.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 305/315/355 Series Ordering Guide for direct substitutes with differing position counts or mounting styles. Verify mechanical footprint and electrical ratings match before substituting.
