305-060-556-512

Edgeboard Connectors Overview

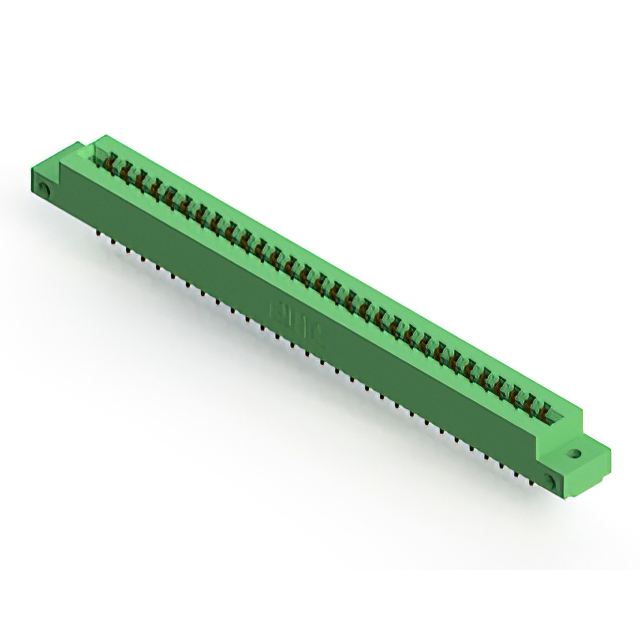

The EDAC Inc. 305-060-556-512 is a standard card edge connector designed for dual-edge board applications. It features 60 positions with a 3.96 mm (0.156 inch) contact spacing and two rows of contacts. The connector utilizes female half-beadle terminals with gold plating over copper alloy substrates, rated for 5 A current. It accommodates printed circuit boards with thicknesses ranging from 1.37 mm to 1.78 mm. The housing is constructed from green thermoplastic polyester, supporting panel mount installation at a vertical angle.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for secure connection to double-sided card edge PCBs
• Gold-plated half-beadle contacts ensure reliable signal transmission and corrosion resistance
• Thermoplastic polyester insulator body provides structural stability and environmental protection
• Vertical panel mount design facilitates standardized chassis integration

Edgeboard Connectors Applications

• Industrial control systems requiring robust backplane interconnects
• Telecommunications equipment utilizing modular card architectures
• Automotive electronics assemblies demanding high reliability
• Test and measurement instrumentation interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm terminal type, flange characteristics, and mounting hardware options. Ensure that the selected variant matches the required PCB thickness tolerance and current rating specifications for the target application environment before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with 3.96 mm spacing is required for vertical panel mounting. Confirm compatibility with the target PCB thickness range of 1.37 mm to 1.78 mm. Evaluate the need for specific flange features or threading options based on the mechanical enclosure design constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and termination styles, providing versatile solutions for board-to-board and board-to-panel connections in industrial and commercial electronic applications.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 305 Series Ordering Guide for direct substitutes with differing position counts or flange configurations. Verify mechanical footprint and electrical ratings before integrating alternative components into existing designs.
