305-062-500-204

Edgeboard Connectors Overview

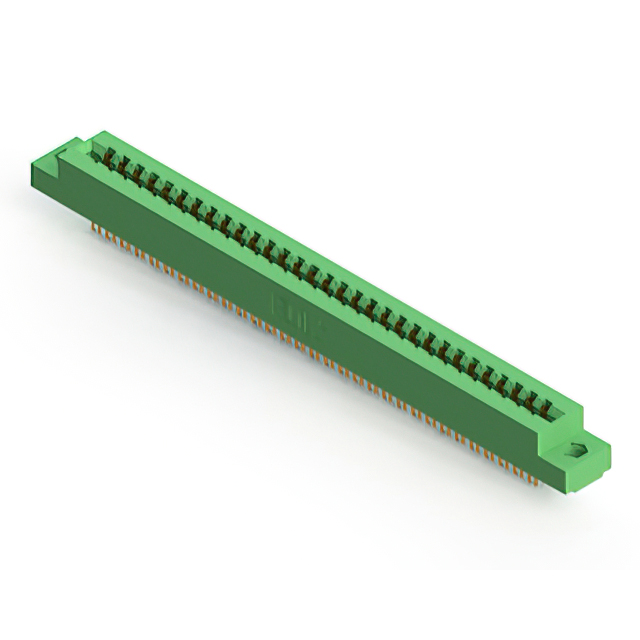

The EDAC Inc. 305-062-500-204 is a standard card edge connector header from the 305 series, designed for panel mount applications with a vertical orientation. It features 62 positions arranged in a dual-row configuration with a 3.96 mm pitch. The connector supports a 1.57 mm board thickness and utilizes gold-plated copper alloy contacts with solder lug termination. Rated for 5 A continuous current, it offers robust electrical performance.

Edgeboard Connectors Feature Summary

• Accepts between-contact and in-contact polarizing keys for secure alignment
• Dual-row design facilitates high-density signal routing
• Gold-plated contacts ensure reliable conductivity and corrosion resistance

Edgeboard Connectors Applications

• Industrial control systems requiring secure card edge connections
• Telecommunications equipment utilizing standard card edge interfaces
• Test and measurement devices needing reliable panel-mounted headers

Edgeboard Connectors Procurement Notes

Verify the specific part number against official EDAC documentation to confirm compatibility with your PCB stack-up and polarizing key requirements. Ensure that the 1.57 mm board thickness specification matches your manufacturing standards. Confirm that the solder lug termination type aligns with your assembly process capabilities before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a 62-position dual-row card edge connector is required for panel mounting. The 3.96 mm pitch and 5 A rating suit applications demanding moderate density and current capacity. Consider the availability of polarizing keys if mechanical locking is necessary for your specific assembly environment.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series provides various position counts while maintaining consistent 3.96 mm pitch and panel mount characteristics. The 305-062-500-204 specifically addresses needs for higher pin counts within this standardized form factor.

Edgeboard Connectors Replacement Considerations

Consult official EDAC cross-reference data for verified substitutes. Generic equivalents may not match the precise 1.57 mm board thickness or polarizing key acceptance specifications.
