Edgeboard Connectors Overview

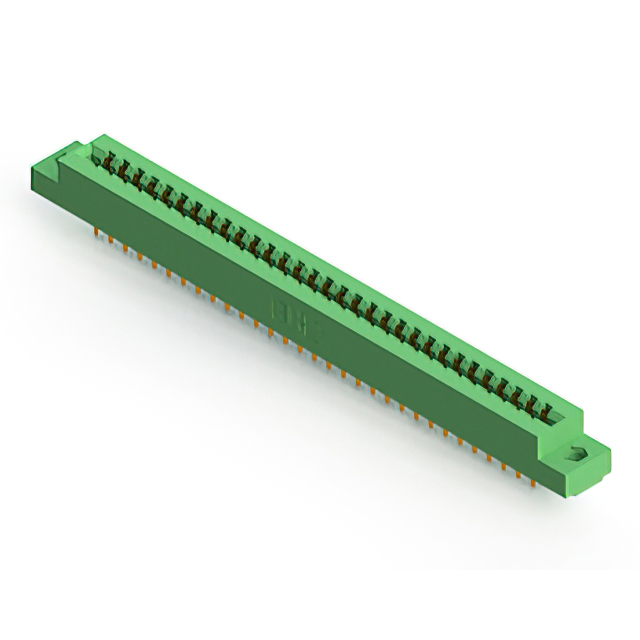

The EDAC Inc. 305-062-520-504 is a standard card edge connector from the 305 series, designed for dual female contact configurations with 62 positions. It features a 3.96 mm pitch and accommodates a board thickness of 1.57 mm. The connector utilizes gold-plated copper alloy contacts to ensure reliable signal transmission and has a current rating of 5 A. Constructed with a thermoplastic housing, it supports panel mounting in a vertical orientation. This component is engineered for robust performance within electronic assemblies requiring secure card edge interfacing.

Edgeboard Connectors Feature Summary

• Dual female contact configuration for secure card edge mating
• Gold-plated copper alloy contacts for enhanced conductivity
• Thermoplastic housing material for structural stability
• Vertical panel mounting style for space-efficient integration

Edgeboard Connectors Applications

• Industrial control systems
• Telecommunications equipment
• Test and measurement instruments

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and housing color variants. Ensure that the selected part number aligns with the required PCB thickness tolerance of 1.57 mm. Cross-reference the manufacturer's latest datasheet to confirm compliance with current RoHS directives and environmental operating temperature ranges before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this connector when a dual-row interface with a 3.96 mm pitch is required for vertical panel installation. The 62-position count suits applications needing moderate I/O density. Verify compatibility with the target PCB edge guide dimensions and ensure the 5 A current rating meets the circuit's electrical demands. Confirm that the gold plating specification satisfies the intended cycle life requirements for the mating cycles.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors, which are widely used in modular electronic designs. The series offers various position counts and mounting styles to accommodate different form factors. The 305-062-520-504 specifically addresses needs for high-reliability connections in environments where vibration resistance and stable electrical contact are critical for long-term system operation.

Edgeboard Connectors Replacement Considerations

Direct replacements must match the 3.96 mm pitch, 62 positions, and dual female contact type. Verify mechanical footprint compatibility with existing panel cutouts. Check if alternative manufacturers offer equivalent specifications for current rating and insulation resistance. Ensure any substitute maintains the same vertical mounting orientation and solder pin termination style.
