Edgeboard Connectors Overview

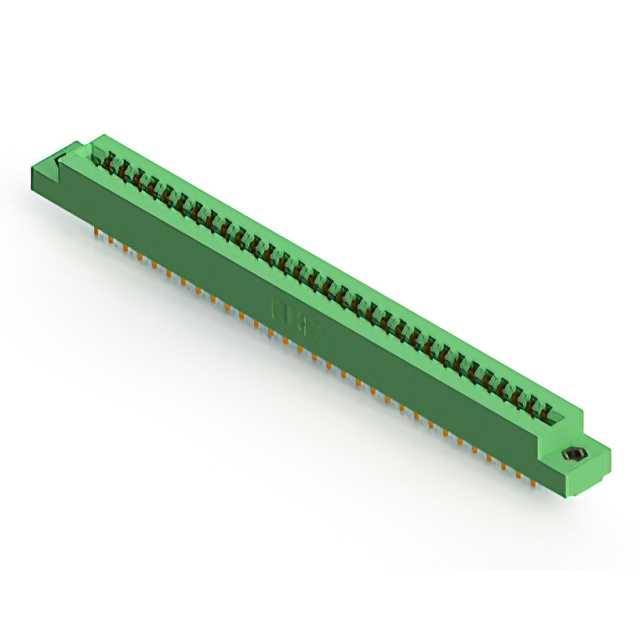

The EDAC 305-062-520-507 is a standard card edge connector from the 305 series, designed for panel mount vertical installation. It features 62 positions arranged in a dual row configuration with a 3.96 mm (0.156 inch) pitch. The connector utilizes gold-plated copper alloy contacts and a green thermoplastic housing. It supports board thicknesses between 1.37 mm and 1.78 mm and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-row female contact configuration for high-density signal routing
• Gold-plated copper alloy contacts ensure reliable conductivity
• Vertical panel mount design with solder pin termination
• Thermoplastic housing provides structural stability

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Test and measurement instrument interfaces
• Automotive electronics modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC 305 Series Ordering Guide to confirm compatibility with required board thicknesses and mounting hardware. Ensure that the selected variant matches the intended current rating and environmental specifications for the target application. Cross-reference the manufacturer part number with distributor catalogs to confirm availability and lead times before finalizing procurement plans.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge card interface with a 3.96 mm pitch is required. Confirm that the host PCB thickness falls within the specified 1.37 mm to 1.78 mm range to ensure proper contact engagement. Evaluate the need for vertical panel mounting versus other orientations. Consider the gold plating thickness if harsh environmental conditions are present.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and configurations to support diverse electronic assembly needs. The 305-062-520-507 specifically addresses applications requiring 62 connections in a dual-row format, providing a robust solution for edgeboard connectivity in professional electronic systems.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 305, 315, and 355 Series Ordering Guide for direct substitutes. Verify mechanical dimensions and electrical ratings before swapping components. Ensure that any replacement maintains the same pitch and row configuration to preserve PCB layout integrity.
