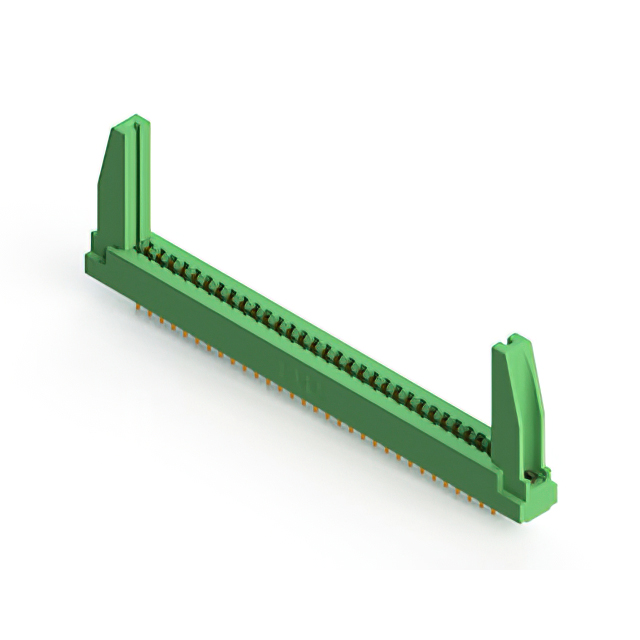

305-062-520-578 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 62POS 0.156. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 305-062-520-578
- Description：CONN EDGE DUAL FMALE 62POS 0.156
- Series：305
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：31
- Number of Positions：62
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.156" (3.96mm)
- Read Out：Dual
- Features：-
- Mounting Type：Panel Mount, Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Semi Bellows
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 305-062-520-578
Edgeboard Connectors Overview
The EDAC Inc. 305-062-520-578 is a standard card edge connector receptacle featuring 62 positions arranged in a dual-row configuration. It utilizes a 3.96 mm (0.156 inch) pitch and is designed for PCB mount installation with straight termination. The contacts are constructed from copper alloy with gold plating, supporting a continuous current rating of 5 A. The housing is made of green thermoplastic polyester, accommodating board thicknesses up to 1.57 mm. Operating temperatures range from -40°C to +105°C.
Edgeboard Connectors Feature Summary
- Dual-row receptacle design for high-density signal routing
- Gold-plated copper alloy contacts ensure reliable conductivity
- Thermoplastic polyester housing provides thermal stability
- Accepts between-contact and in-contact polarizing keys
Edgeboard Connectors Applications
- Industrial control systems requiring robust interconnects
- Telecommunications equipment backplanes
- Automotive electronic modules
- Test and measurement instrumentation
Edgeboard Connectors Procurement Notes
Verify the specific suffix codes against official EDAC documentation to confirm exact pin count, termination style, and mounting orientation. Ensure compatibility with target PCB stack-up dimensions and mating card edge profiles before procurement. Cross-reference RoHS compliance status with current manufacturer declarations.
Edgeboard Connectors Selection Notes
Select this component when a 62-position dual-row interface is required with a 3.96 mm pitch. Confirm that the 5 A current rating and 1.57 mm maximum board thickness align with system requirements. Verify that the straight PCB mount orientation fits the mechanical enclosure constraints.
Edgeboard Connectors Part Context
This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and mounting styles, characterized by durable thermoplastic housings and gold-plated contacts suitable for general-purpose industrial applications.
Edgeboard Connectors Replacement Considerations
Consult official EDAC cross-reference guides for direct substitutes. Verify identical pitch, row count, and current ratings when evaluating alternative sources.
