305-062-556-558

Edgeboard Connectors Overview

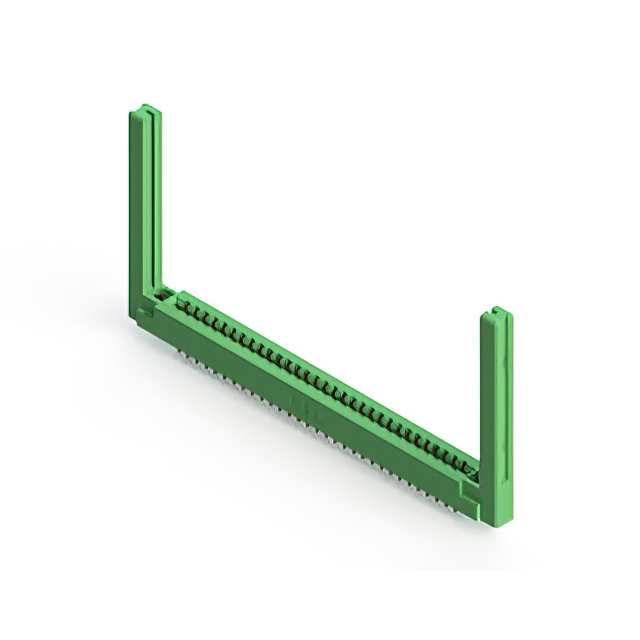

The EDAC 305-062-556-558 is a standard card edge connector from the 305 series, designed for dual-row applications. It features a 3.96 mm pitch and accommodates 62 positions with a contact configuration of 31 per row. The component supports a maximum board thickness of 1.57 mm and utilizes gold-plated copper alloy contacts to ensure reliable signal transmission. Rated for 5 A current, it employs solder pin termination for secure mounting.

Edgeboard Connectors Feature Summary

• Dual-row configuration providing high-density connectivity options
• Gold-plated contacts on copper alloy substrate for durability
• Compatible with 1.57 mm thick circuit boards

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment interfaces
• Embedded computing hardware modules

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer datasheet to confirm all electrical ratings and mechanical dimensions before integration. Ensure compatibility with the target PCB layout and mating card specifications. Cross-reference official part numbers to avoid substitution errors in production environments.

Edgeboard Connectors Selection Notes

Select this model when a dual-row connection with a 3.96 mm pitch is required. It is suitable for designs needing 62 total connections with a 5 A current rating. Consider the panel mount style and solder pin termination method during mechanical design.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 Series, which offers various mounting options and card guide solutions. The series is characterized by high-temperature insulators and diverse termination styles, catering to demanding industrial and commercial electronic applications.

Edgeboard Connectors Replacement Considerations

Check for direct substitutes within the 305 series or compatible families. Verify that alternative parts match the 3.96 mm pitch, 62-position count, and dual-row configuration to maintain mechanical and electrical integrity.
