305-064-555-512

Edgeboard Connectors Overview

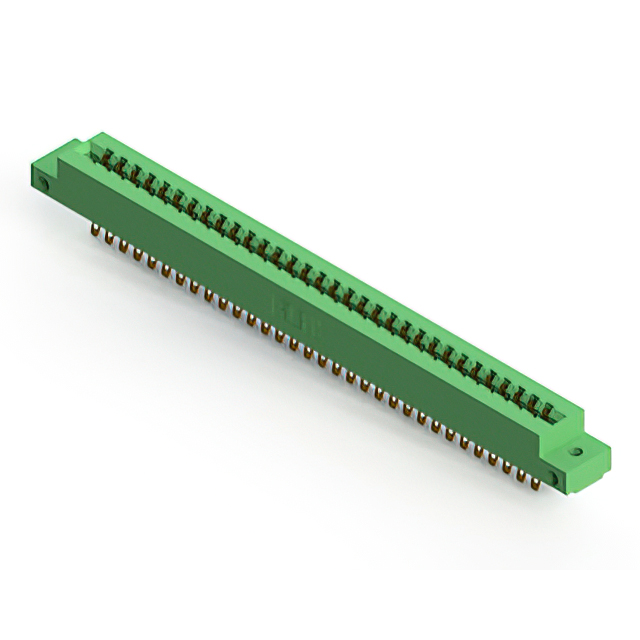

The EDAC Inc. 305-064-555-512 is a standard card edge connector from the 305 Series, designed for dual-row female applications with 64 positions. It features a 3.96 mm (0.156 inch) pitch and accepts PCB thicknesses between 1.37 mm and 1.78 mm. The connector utilizes gold-plated copper alloy contacts and a green thermoplastic polyester insulator. Rated for 5 A continuous current and 1800 VACrms dielectric voltage, it supports panel mount installation with flush flanges. Operating temperatures range from -40°C to +105°C, ensuring reliability in demanding environments.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration with 64 positions for high-density interconnects
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Thermoplastic polyester insulation provides structural stability and thermal resistance
• Flush-mounted flange design facilitates secure panel integration

Edgeboard Connectors Applications

• Industrial control systems requiring robust card edge interfaces
• Telecommunications equipment utilizing high-density board connections
• Test and measurement instruments needing reliable signal paths
• Automotive electronics operating within specified temperature ranges

Edgeboard Connectors Procurement Notes

Verify component authenticity through authorized EDAC distributors or verified supply chain channels. Confirm RoHS compliance status prior to procurement. Ensure storage conditions maintain integrity of gold plating and insulation materials. Cross-reference datasheet specifications against project requirements to validate electrical and mechanical compatibility. Maintain documentation of batch codes for traceability purposes.

Edgeboard Connectors Selection Notes

Select this connector when dual-row high-pin-count interfaces are required. Verify PCB thickness falls within the 1.37 mm to 1.78 mm acceptance range. Confirm panel mounting constraints align with the flush flange design. Evaluate current load requirements against the 5 A rating. Consider environmental factors such as temperature extremes and vibration levels during selection.

Edgeboard Connectors Part Context

Part of the EDAC 305 Series, which offers various position counts and mounting styles. The series is known for durability and consistent performance in industrial applications. This specific model represents a high-position variant suitable for complex circuit boards requiring extensive connectivity options.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include other EDAC 305 Series models with matching pitch and row count. Verify pin configuration and flange dimensions before substitution. Consult official EDAC cross-reference guides for approved alternatives.
