Edgeboard Connectors Overview

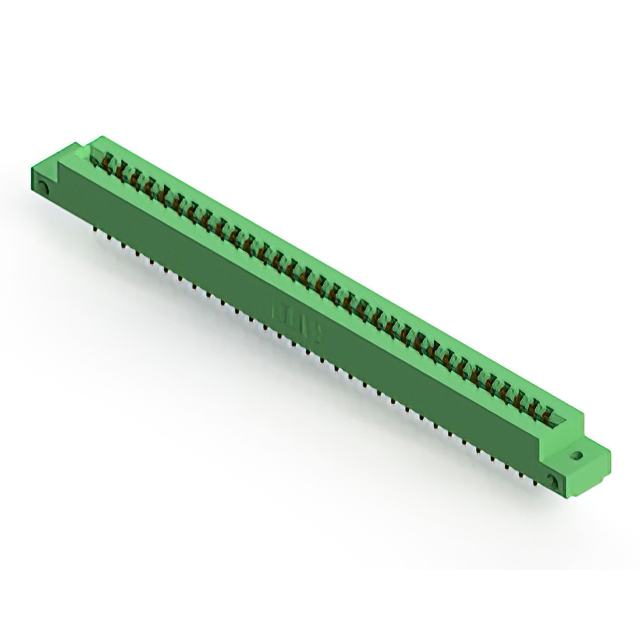

The EDAC Inc. 305-064-556-512 is a standard card edge connector from the 305 series, designed for panel mount applications. It features 64 positions arranged in two rows with a 0.156-inch (3.96 mm) pitch. The connector supports a board thickness of 1.57 mm and utilizes gold-plated copper alloy contacts rated for 5 A current. It employs solder pin termination and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-row female configuration for high-density signal routing
• Gold-plated copper alloy contacts ensure reliable conductivity
• Thermoplastic housing provides structural stability
• Vertical panel mount design facilitates secure installation

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment backplanes
• Test and measurement instrumentation panels
• Automotive electronic module interfaces

Edgeboard Connectors Procurement Notes

Verify component authenticity through authorized EDAC distributors or certified partners. Confirm RoHS compliance status and specific lot traceability requirements against project specifications. Ensure storage conditions maintain contact integrity prior to assembly. Cross-reference datasheet revisions to confirm terminal plating and material consistency.

Edgeboard Connectors Selection Notes

Select this model when a 64-position dual-row interface is required for vertical panel mounting. The 0.156-inch pitch accommodates standard card edge layouts. Verify that the target PCB thickness matches the 1.57 mm specification. Consider the 5 A current rating and operating temperature range relative to system thermal and electrical loads.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and termination styles for diverse connectivity needs. The 305-064-556-512 specifically addresses applications needing a 64-contact dual-row solution with solder pin termination for durable panel integration.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 305 series variants with matching 64-position dual-row configurations and 0.156-inch pitch. Verify identical panel mount orientation and solder pin termination before substitution. Cross-check housing material and contact plating specifications to ensure functional equivalence.
