305-066-521-501

Edgeboard Connectors Overview

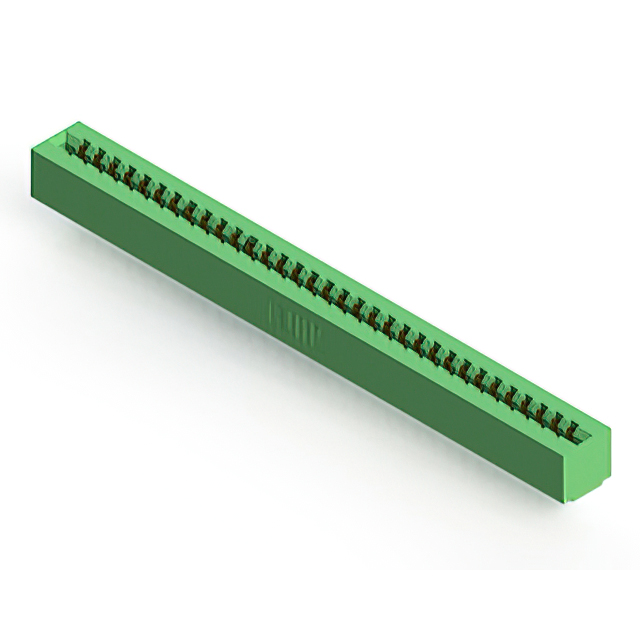

The EDAC Inc. 305-066-521-501 is a dual-edge female card edge connector designed for through-hole mounting. It features 66 positions with a 0.156-inch (3.96mm) pitch across two rows. The contacts are made of copper alloy with gold plating and utilize a semi-crimping termination method. The insulator is constructed from green thermoplastic polyester, supporting board thicknesses between 0.054 and 0.070 inches. Rated for operation from -40°C to 105°C, it complies with RoHS3 standards.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for secure board insertion
• Gold-plated copper alloy contacts ensure reliable conductivity
• Through-hole solder termination for stable PCB attachment
• Thermoplastic polyester insulation provides thermal stability

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Automotive electronic module connections

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official 305 Series Ordering Guide to confirm contact type, flange options, and termination style. Ensure compatibility with target PCB thickness ranges and mating card specifications before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a high-density dual-edge interface is required for rigid board applications. Confirm that the 0.156-inch pitch aligns with existing design constraints and that through-hole mounting is feasible within the assembly process limitations.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and termination styles, providing modular solutions for diverse edgeboard connectivity needs in demanding electronic environments.

Edgeboard Connectors Replacement Considerations

Cross-reference with other 305-series variants such as 305-066-521-508 or 305-066-521-512 if different flange configurations or termination types are needed while maintaining the same position count and pitch.
