305-068-556-504

Edgeboard Connectors Overview

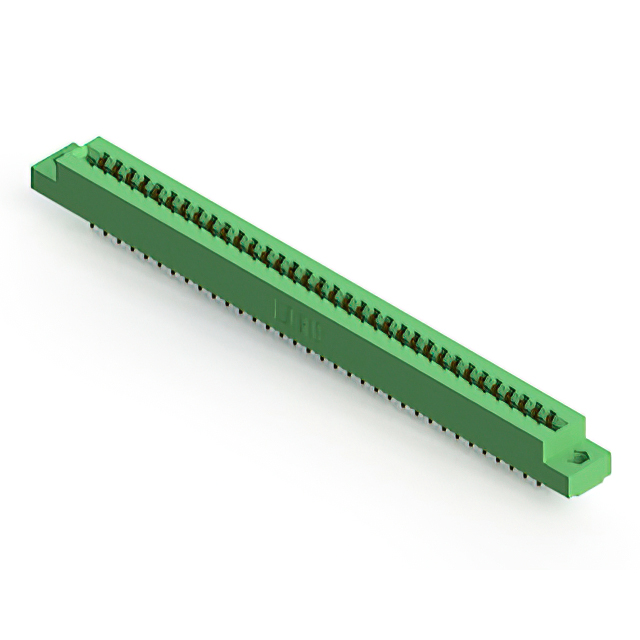

The EDAC Inc. 305-068-556-504 is a standard card edge connector from the 305 series, designed for dual-edge board applications. It features 68 positions with a 0.156-inch (3.96 mm) pitch and supports PCB thicknesses between 0.054 and 0.070 inches. The connector utilizes female contacts made of copper alloy with gold plating, rated for 5 A current. It employs a solder pin termination method and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Gold-plated copper alloy contacts ensuring reliable conductivity
• Vertical panel mount installation style for structural stability

Edgeboard Connectors Applications

• Industrial control system interconnections
• Medical device internal circuitry connections
• Agricultural technology equipment interfaces

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact physical dimensions and termination details. Ensure compatibility with target PCB thickness specifications before integration. Confirm RoHS compliance status through manufacturer datasheets. Validate that the selected variant matches the required current rating and operating temperature range for the intended application environment.

Edgeboard Connectors Selection Notes

Select this component when a high-density connection is required for dual-edge cards with a 3.96 mm pitch. Consider the vertical panel mount style for rigid structural support in industrial enclosures. Evaluate the 5 A current rating against peak load requirements. Ensure the housing material and contact plating meet environmental durability standards for the deployment location.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors, which are widely used in rugged environments. The series offers various position counts and mounting options to accommodate different board sizes. EDAC specializes in interconnect solutions for medical, agricultural, and industrial sectors, emphasizing durability and reliability in harsh conditions.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include parts with identical pitch and position counts but different termination or flange styles. Verify mechanical fit and electrical ratings before swapping. Cross-referencing with other manufacturers requires careful validation of dimensional tolerances and contact geometry.
