Edgeboard Connectors Overview

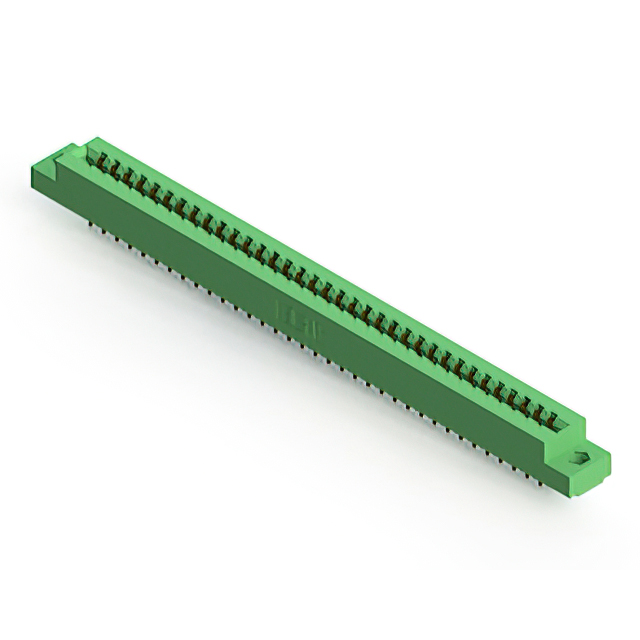

The EDAC Inc. 305-070-556-504 is a standard card edge connector from the 305 series, designed for dual-edge female connections. It features 70 positions with a contact spacing of 0.156 inches (3.96 mm) and a row spacing of 0.140 inches (3.56 mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Constructed with copper alloy contacts that are gold-plated, it provides a continuous current rating of 5 A and supports 1800 VACrms insulation voltage. The housing is made of green thermoplastic polyester, ensuring durability in demanding environments.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for secure board insertion
• Gold-plated copper alloy contacts for reliable conductivity
• Thermoplastic polyester insulator body for structural integrity
• Accepts between-contact and in-contact polarizing keys

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment signal routing
• Automotive electronics module connections
• Medical device internal circuit interfacing

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the manufacturer's official ordering guide to ensure correct pin count, plating thickness, and mounting style. Confirm RoHS compliance status and lead times directly with authorized distributors, as availability may vary by region. Cross-reference the datasheet dimensions to validate panel cutout requirements before final procurement decisions.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge female connector with 70 positions and 3.96 mm spacing is required. Ensure the target PCB thickness matches the 1.57 mm specification. Consider the 5 A current rating and 1800 VACrms insulation voltage for electrical safety margins. Verify compatibility with polarizing keying systems if mechanical alignment is critical for the assembly process.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors, which are widely used in high-reliability applications. The series offers various position counts and mounting styles, providing flexibility for different board densities. The 305-070-556-504 specifically addresses needs for dual-edge interfaces with standardized spacing, fitting into broader system architectures requiring stable electrical connections.
