305-074-556-207

Edgeboard Connectors Overview

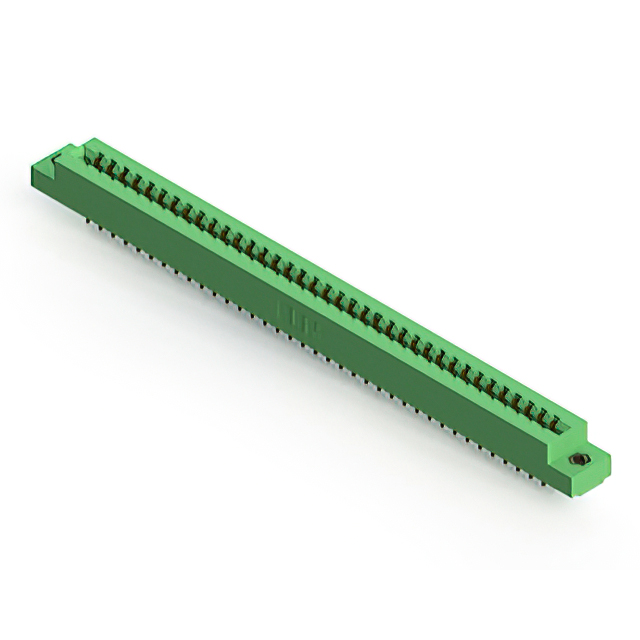

The EDAC Inc. model 305-074-556-207 is a standard card edge connector designed for vertical panel mounting applications. It features 74 positions with a 3.96 mm (0.156 inch) pitch across two rows. The connector utilizes gold-plated copper alloy contacts and solder lug termination. It accommodates board thicknesses ranging from 1.37 mm to 1.78 mm (0.054 to 0.070 inches). The housing is constructed from green thermoplastic material, providing insulation resistance of 5 GOhms. The unit operates within a temperature range of -40°C to +105°C and carries an RoHS3 compliant status.

Edgeboard Connectors Feature Summary

• Vertical panel mount design for secure installation
• Dual-edge female contact configuration for non-specified cards
• Gold-plated copper alloy contacts for reliable conductivity
• Thermoplastic housing with high insulation resistance

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Telecommunications equipment backplanes
• Automotive electronic modules
• Test and measurement instrumentation

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to ensure correct termination style and flange characteristics. Confirm that the required card thickness falls within the specified 1.37 mm to 1.78 mm range before integration. Check current availability status through authorized distributors as supply levels may vary. Ensure compliance with project-specific environmental regulations regarding RoHS3 standards.

Edgeboard Connectors Selection Notes

Select this component when a high-density 74-position interface is required for dual-edge card insertion. The 3.96 mm pitch allows for substantial trace spacing on printed circuit boards. Consider the vertical orientation and panel mounting requirements for enclosure design. Verify that the operating temperature range meets the environmental conditions of the intended application site.

Edgeboard Connectors Part Context

This part belongs to the EDAC 305 series of standard card edge connectors. The series offers various position counts and termination options for diverse electronic assembly needs. The 305 series is characterized by its durability and consistent electrical performance in demanding environments. It serves as a critical interconnection solution between flexible or rigid circuit cards and system backplanes.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 305 Series Ordering Guide for direct substitutes with differing pin counts or termination types. Cross-reference compatible parts such as 305-072-556-207 or 305-076-556-207 if position adjustments are necessary. Ensure mechanical footprint compatibility when considering alternative models from the same manufacturer family.
