305-076-555-201

Edgeboard Connectors Overview

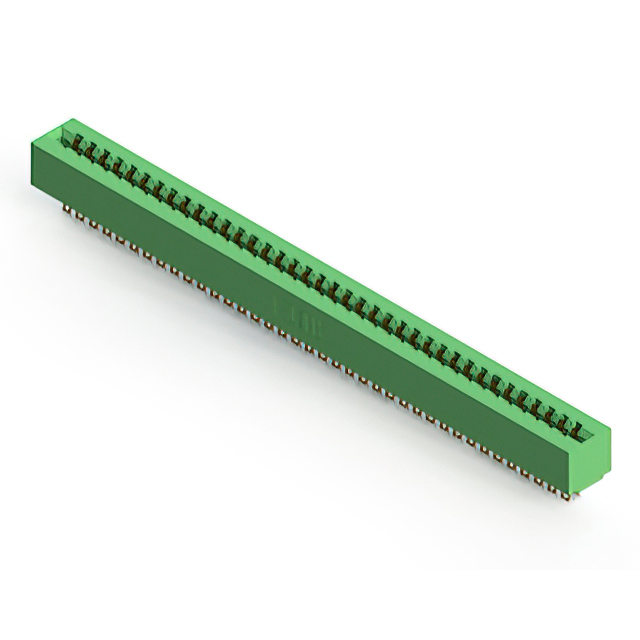

The EDAC Inc. 305-076-555-201 is a standard card edge connector from the 305 Series, designed for reliable signal transmission in electronic assemblies. It features a dual female configuration with 76 positions and a contact spacing of 0.156 inches (3.96 mm). The unit utilizes gold-plated copper alloy contacts to ensure conductivity and corrosion resistance. The insulator body is green thermoplastic polyester, rated for operation between -40°C and 105°C. This component supports PCB mounting with a solder termination style.

Edgeboard Connectors Feature Summary

• Accepts polarizing keys for secure board alignment
• Low profile insulator body design
• Gold-plated contacts for durability

Edgeboard Connectors Applications

• Industrial control systems
• Telecommunications equipment
• Automotive electronics

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm exact pin count, termination type, and insulation color. Ensure compatibility with the target printed circuit board thickness and mating card dimensions before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this model when a high-density connection with 0.156-inch pitch is required. Confirm that the application environment falls within the specified temperature range and that the current rating meets the system requirements.

Edgeboard Connectors Part Context

This component belongs to the EDAC 305 Series, which provides a wide range of card edge connectors. The series is characterized by its robust construction and standardized dimensions, suitable for various industrial and commercial interconnect applications requiring reliable performance.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 305 Series ordering guide for direct substitutes. Verify that alternative part numbers match the 76-position count, 3.96mm pitch, and dual female configuration.
