307-007-559-103

Edgeboard Connectors Overview

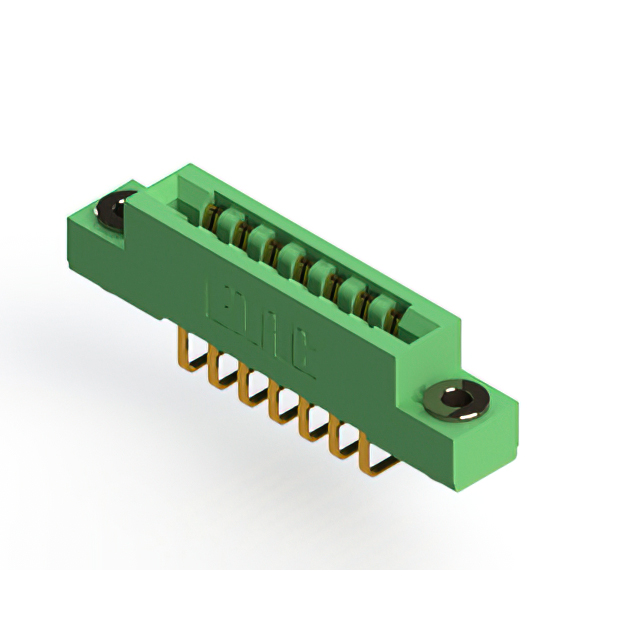

The EDAC Inc. 307-007-559-103 is a standard card edge connector from the 307 series, designed for single-edge board applications. It features 7 positions with a 3.96 mm (0.156 inch) pitch and gold-plated copper alloy contacts. The component utilizes a solder termination method and is housed in green thermoplastic insulation. Rated for 5 A current, it operates within a temperature range of -40°C to +105°C. The connector supports non-specified single-edge cards with thicknesses between 1.37 mm and 1.78 mm.

Edgeboard Connectors Feature Summary

• Single-row configuration with seven contact positions for compact circuit integration
• Gold-plated copper alloy contacts ensure reliable signal transmission and corrosion resistance
• Solder termination provides secure mechanical and electrical attachment to printed circuit boards
• Thermoplastic housing offers durable insulation suitable for industrial operating temperatures

Edgeboard Connectors Applications

• Single-edge card insertion systems requiring low-profile connections
• Industrial control modules utilizing standard card edge interfaces
• Electronic assemblies needing robust solder-mount connectivity
• Equipment operating in environments ranging from -40°C to +105°C

Edgeboard Connectors Procurement Notes

Verify that the specific part number matches the required single-edge configuration and seven-position count. Confirm that the solder termination style aligns with the target assembly process. Ensure the thermal rating meets the operational environment requirements. Cross-reference the manufacturer's official documentation to validate compliance with relevant safety standards before procurement.

Edgeboard Connectors Selection Notes

Select this component when a single-row, seven-position interface is necessary for non-specified single-edge cards. The 3.96 mm pitch accommodates standard board layouts. Gold plating is preferred for environments requiring high reliability. Verify that the panel or PCB mounting constraints allow for the specified physical dimensions and row spacing.

Edgeboard Connectors Part Context

This component belongs to the EDAC 307 series of standard card edge connectors. The series offers various position counts and termination styles. The 307-007-559-103 specifically addresses single-edge applications with solder termination. It complements other variants in the lineup that may offer dual-edge or different pitch configurations.

Edgeboard Connectors Replacement Considerations

Compatible substitutes include other EDAC 307 series connectors with matching seven-position counts and 3.96 mm pitch. Verify that alternative parts maintain the same single-edge orientation and solder termination type. Ensure electrical ratings and material specifications are equivalent to guarantee functional interchangeability.
