307-014-505-158

Edgeboard Connectors Overview

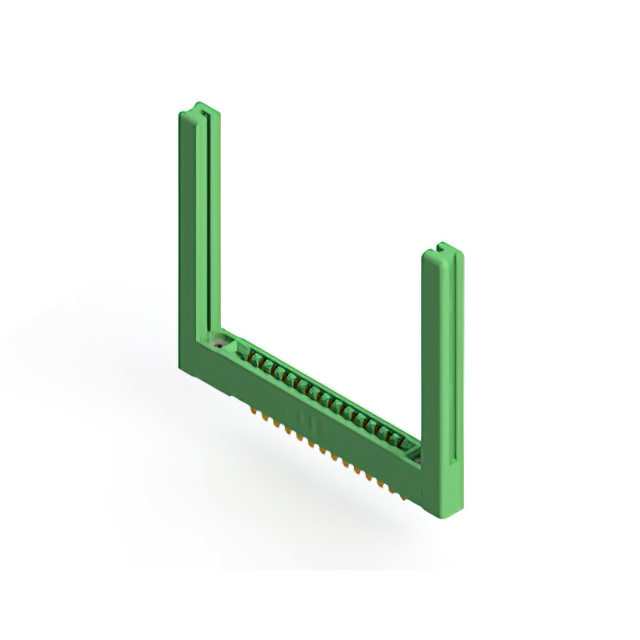

The EDAC Inc. 307-014-505-158 is a standard card edge connector from the 307 series, designed for single-row applications. It features 14 positions with a contact spacing of 0.156 inches (3.96 mm) and a row spacing of 0.200 inches (5.08 mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Constructed with copper alloy contacts finished in gold plating, it provides reliable electrical performance. The housing is made of green thermoplastic polyester, ensuring durability and insulation.

Edgeboard Connectors Feature Summary

• Single-row female configuration for direct board insertion
• Gold-plated copper alloy contacts for corrosion resistance
• Thermoplastic polyester housing for structural integrity

Edgeboard Connectors Applications

• Industrial control system interconnections
• Telecommunications equipment backplanes
• Consumer electronic module interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm the exact contact type, termination style, and flange configuration required for the assembly. Ensure the selected variant matches the PCB thickness tolerance and mounting orientation needs. Cross-reference the manufacturer datasheet for precise dimensional drawings before finalizing procurement orders to avoid compatibility issues.

Edgeboard Connectors Selection Notes

Select this component when a single-row interface with 14 positions is required. The 3.96 mm pitch suits standard board layouts. Verify that the operating temperature range of -40°C to +105°C meets environmental requirements. Confirm that the panel or PCB mount style aligns with the mechanical design constraints of the target application.

Edgeboard Connectors Part Context

This part belongs to the EDAC 307 Series, which specializes in card edge connectors with a 3.96 mm contact spacing. The series offers various configurations including single and double rows, different termination methods, and diverse flange options. These connectors are engineered for high-reliability connections in demanding electronic environments.

Edgeboard Connectors Replacement Considerations

Direct substitutes within the same series include variants like 307-014-505-104 or 307-014-505-178, depending on the specific termination and flange requirements. Ensure any replacement maintains the 14-position count and 3.96 mm pitch to guarantee mechanical fit.
