307-060-458-212

Edgeboard Connectors Overview

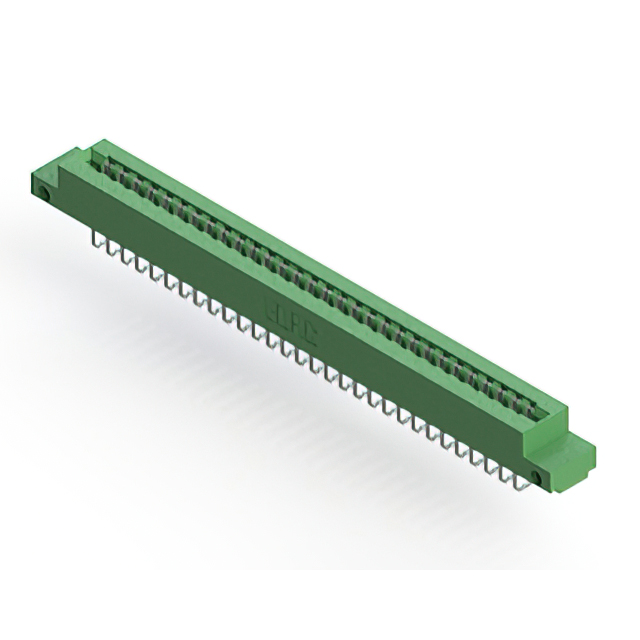

The EDAC Inc. 307-060-458-212 is a standard card edge connector from the 307 series, designed for panel mount applications with a right-angle orientation. It features 60 positions arranged in two rows, utilizing a contact spacing of 3.96 mm and a row spacing of 5.08 mm. The component accepts printed circuit boards with a nominal thickness of 1.57 mm. Electrical specifications include a current rating of 5 A and an insulation resistance of 5 GOhms. The contacts are constructed from copper alloy with gold plating, while the insulator body is made of thermoplastic polyester. The operating temperature range spans from -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-row configuration with 3.96 mm contact spacing and 5.08 mm row spacing
• Gold-plated copper alloy contacts ensuring reliable electrical performance
• Thermoplastic polyester insulator body providing structural stability
• Right-angle panel mount design accommodating 1.57 mm PCB thickness

Edgeboard Connectors Applications

• Industrial control systems requiring robust board-to-board connections
• Telecommunications equipment utilizing standard card edge interfaces
• Test and measurement devices needing high-density signal routing

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm mechanical dimensions and termination style. Ensure compatibility with the target PCB thickness of 1.57 mm before procurement. Confirm that the right-angle panel mount configuration aligns with the enclosure design requirements. Cross-reference the 60-position count to validate signal integrity needs. Check for any RoHS compliance declarations if required by project specifications.

Edgeboard Connectors Selection Notes

Select this component when a dual-row card edge interface with 3.96 mm pitch is required. The 5 A current rating suits moderate power distribution applications. Verify that the right-angle form factor fits within the available spatial constraints. Consider the thermoplastic construction for general environmental protection. Ensure the mounting style matches the assembly process capabilities.

Edgeboard Connectors Part Context

This part belongs to the EDAC 307 Series, which offers various position counts and mounting options. The series is characterized by its standardized 3.96 mm contact spacing and acceptance of 1.57 mm thick cards. Other variants in the series may differ in row count, termination type, or housing material. This specific model represents a mid-range position count within the broader product family.

Edgeboard Connectors Replacement Considerations

Direct substitutes must match the 60-position count, 3.96 mm pitch, and dual-row layout. Verify identical PCB thickness tolerance and right-angle mounting geometry. Contact material and plating should be comparable to ensure similar electrical characteristics.
