310-87-105-01-640101

$0.34

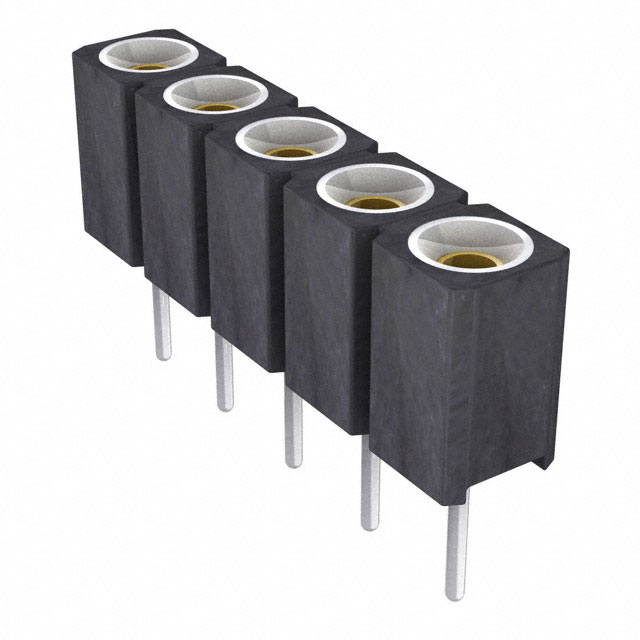

Description：CONN SOCKET 5POS 0.1 GOLD PCB
Series：310
Mfr：Preci-Dip
Package：Bulk

SKU:c2d809f63aa1 Category: Headers, Receptacles, Female Sockets Brand: Preci-Dip

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

310-87-105-01-640101 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Preci-Dip. Its product description is CONN SOCKET 5POS 0.1 GOLD PCB. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 310-87-105-01-640101

Description：CONN SOCKET 5POS 0.1 GOLD PCB
Series：310
Mfr：Preci-Dip
Package：Bulk
Connector Type：Socket
Contact Type：Female Socket
Style：Board to Board
Number of Positions：5
Number of Positions Loaded：All
Pitch - Mating：0.100" (2.54mm)
Number of Rows：1
Row Spacing - Mating：-
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：Flash
Insulation Color：Black
Insulation Height：0.165" (4.20mm)
Contact Length - Post：0.125" (3.18mm)
Operating Temperature：-55°C ~ 125°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Tin
Mated Stacking Heights：-
Ingress Protection：-
Features：-
Current Rating (Amps)：3A
Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for 310-87-105-01-640101

310-87-105-01-640101

Headers, Receptacles, Female Sockets Overview

The Preci-Dip 310-87-105-01-640101 is a 5-position SIL socket connector with a 2.54 mm pitch. It features straight, through-hole solder termination for PCB mounting. The contacts are made of brass and beryllium copper alloy, plated with gold and tin. Rated for 3A current, it supports 100V AC and 150V DC. Operating temperature ranges from -55°C to 125°C. Dimensions are 10.16mm length, 4.2mm depth, and 2.54mm width. The housing is glass-filled PET.

Headers, Receptacles, Female Sockets Feature Summary

Straight through-hole solder termination design
Gold and tin contact plating for reliability
Glass-filled polyester insulation material

Headers, Receptacles, Female Sockets Applications

General purpose circuit board interconnections
Industrial control panel wiring
Consumer electronics assembly

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific contact count and pin configuration against the official datasheet before ordering. Confirm that the through-hole solder termination matches the target PCB layout requirements. Ensure the operating voltage and current ratings meet the application's electrical demands. Check for any specific packaging or reel options if automated assembly is required.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, straight-mount socket is needed for 2.54 mm pitch systems. Consider the 3A rating and -55°C to 125°C range for environmental suitability. Compare against other Preci-Dip series like 310-87-104 or 310-87-110 for different pin counts. Evaluate mechanical stability needs against the standard through-hole mounting style.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Preci-Dip SIL socket family, designed for reliable signal and power transmission in compact electronic assemblies. It complements header connectors within the same pitch system. The series offers various pin counts and termination styles to support diverse PCB design architectures.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes include Preci-Dip part numbers 310-87-104-01-640101 (4-pin) and 310-87-110-01-640101 (10-pin) for similar form factors. Cross-brand replacements require matching 2.54 mm pitch, 5-position count, and through-hole solder termination specifications.
