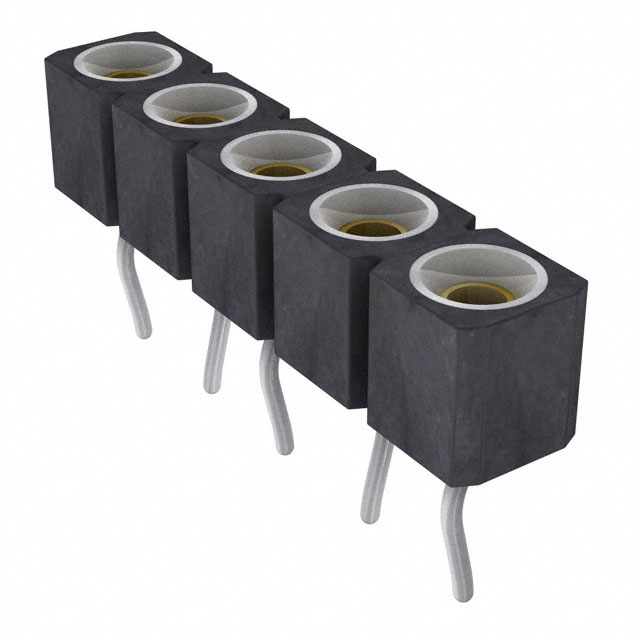

310-87-105-01-666101

$0.29

Description：CONN SOCKET 5POS 0.1 GOLD PCB
Series：310
Mfr：Preci-Dip
Package：Bulk

SKU:340a1e9e0f45 Category: Headers, Receptacles, Female Sockets Brand: Preci-Dip

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

310-87-105-01-666101 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Preci-Dip. Its product description is CONN SOCKET 5POS 0.1 GOLD PCB. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 310-87-105-01-666101

Description：CONN SOCKET 5POS 0.1 GOLD PCB
Series：310
Mfr：Preci-Dip
Package：Bulk
Connector Type：Socket
Contact Type：Female Socket
Style：Board to Board
Number of Positions：5
Number of Positions Loaded：All
Pitch - Mating：0.100" (2.54mm)
Number of Rows：1
Row Spacing - Mating：-
Mounting Type：Through Hole
Termination：Press-Fit, Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：Flash
Insulation Color：Black
Insulation Height：0.165" (4.20mm)
Contact Length - Post：0.122" (3.10mm)
Operating Temperature：-55°C ~ 125°C
Material Flammability Rating：UL94 V-0
Contact Finish - Post：Tin
Mated Stacking Heights：-
Ingress Protection：-
Features：-
Current Rating (Amps)：3A
Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for 310-87-105-01-666101

310-87-105-01-666101

Headers, Receptacles, Female Sockets Overview

The Preci-Dip 310-87-105-01-666101 is a single-row socket connector featuring five positions with a 0.100-inch (2.54mm) mating pitch. Designed for through-hole mounting, it utilizes gold-plated contacts to ensure reliable signal transmission in board-to-board applications. The unit incorporates a push-pull fastening mechanism and operates within a temperature range of -55°C to 125°C.

Headers, Receptacles, Female Sockets Feature Summary

Single-row socket configuration for compact circuit integration
Gold-plated contact surfaces for enhanced conductivity
Push-pull fastening system for secure mechanical retention

Headers, Receptacles, Female Sockets Applications

Board-to-board interconnections
General electronic assembly
Industrial control systems

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific manufacturer part number against official Preci-Dip documentation to confirm current availability and compliance status. Ensure that the selected component meets all required electrical and environmental specifications for the intended application before finalizing procurement decisions.

Headers, Receptacles, Female Sockets Selection Notes

Select this connector when a single-row, five-position socket is required for through-hole PCB mounting. Consider the 0.100-inch pitch and gold plating for compatibility with standard header assemblies. Evaluate the operating temperature range and current ratings to ensure suitability for the target electronic environment.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the Preci-Dip 310 series of rectangular connectors. It serves as a female socket counterpart to male headers, facilitating modular connections in various electronic devices. The design emphasizes durability and consistent electrical performance across diverse industrial and commercial applications.
