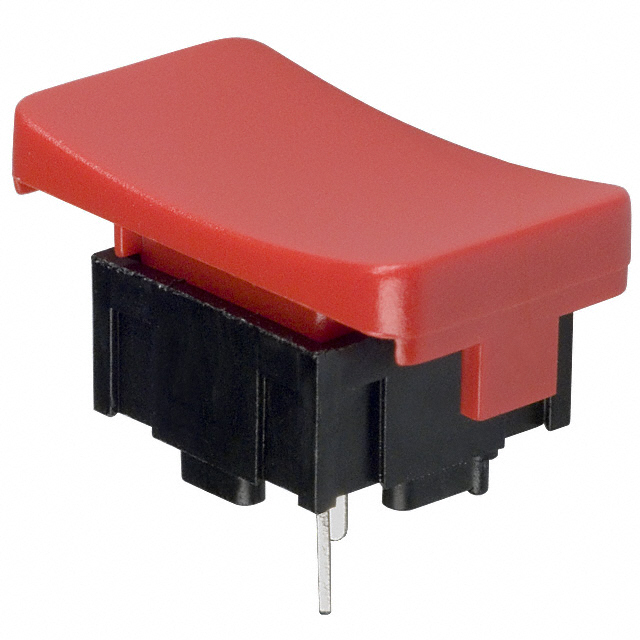

320.21E11RED

320.21E11RED is listed in the Tactile Switches range at ChipApex. The manufacturer field lists E-Switch. Its product description is SWITCH TACT SPST-NO 0.025A 50V. Review the specifications below when checking this part for your BOM.

Tactile Switches specifications for 320.21E11RED

• Description：SWITCH TACT SPST-NO 0.025A 50V
• Series：320
• Mfr：E-Switch
• Package：Bulk
• Circuit：SPST-NO
• Switch Function：Off-Mom
• Contact Rating @ Voltage：0.025A @ 50VDC
• Actuator Type：Rectangular Button
• Mounting Type：Through Hole
• Actuator Height off PCB, Vertical：12.00mm
• Actuator Length, Right Angle：-
• Actuator Orientation：Top Actuated
• Termination Style：PC Pin
• Outline：12.40mm x 12.40mm
• Illumination：Non-Illuminated
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Operating Force：135gf
• Ingress Protection：-
• Features：Red Cap
• Operating Temperature：-20°C ~ 70°C

Tactile Switches datasheet and documents for 320.21E11RED
