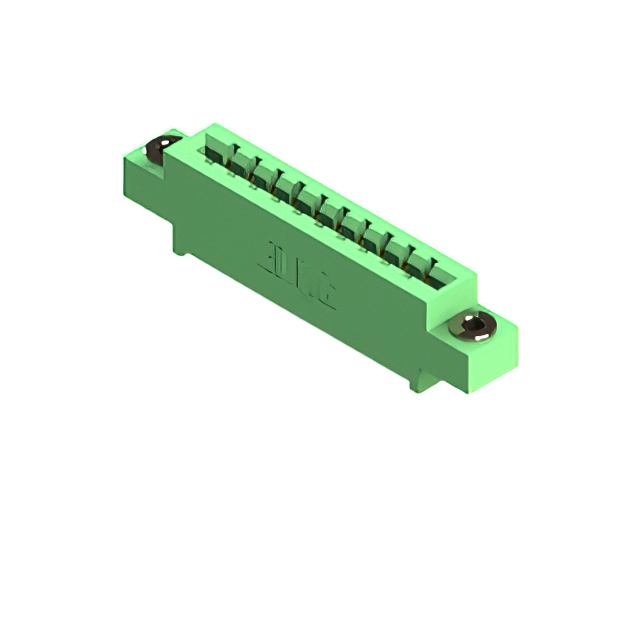

337-010-541-603

$5.45

Description：CONN EDGE SGL FMALE 10POS 0.156
Series：337
Mfr：EDAC Inc.
Package：Box

SKU:378d3cfc7e7a Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

337-010-541-603 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SGL FMALE 10POS 0.156. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 337-010-541-603

Description：CONN EDGE SGL FMALE 10POS 0.156
Series：337
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：10
Number of Positions：10
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.156" (3.96mm)
Read Out：Single
Features：-
Mounting Type：Through Hole
Termination：Wire Wrap
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Top Mount Opening, Floating Bobbin, 0.116" (2.95mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 337-010-541-603

337-010-541-603

Edgeboard Connectors Overview

The EDAC Inc. model 337-010-541-603 is a standard card edge connector socket from the 337 series. It features 10 positions with a pitch of 3.96 mm (0.156 inches). Designed for single-edge PCBs with a thickness of 1.57 mm, it utilizes gold-plated copper alloy contacts rated for 3 A current. The housing is made of thermoplastic polyester, and the unit supports through-hole mounting.

Edgeboard Connectors Feature Summary

Gold-plated contacts ensure reliable signal transmission and corrosion resistance
Thermoplastic polyester housing provides structural stability and insulation
Through-hole termination facilitates secure board attachment

Edgeboard Connectors Applications

Industrial control systems
Telecommunications equipment
Consumer electronics modules

Edgeboard Connectors Procurement Notes

Verify the specific pin configuration and termination style against the official datasheet before ordering. Confirm that the target PCB thickness matches the connector's design specifications to ensure proper mechanical engagement. Check regional availability as distribution may be limited in certain areas.

Edgeboard Connectors Selection Notes

Select this component when a 10-position vertical or angled connection is required for single-edge boards. Ensure the application environment stays within the specified temperature range. Verify that the 3 A current rating meets the circuit requirements for all connected signals.

Edgeboard Connectors Part Context

This part belongs to the EDAC 337 series of standard card edge connectors. The series offers various position counts and mounting angles. The 337-010-541-603 specifically addresses needs for moderate-density connections in compact electronic assemblies requiring durable through-hole integration.

Edgeboard Connectors Replacement Considerations

Direct substitutes are not explicitly confirmed in public documentation. Evaluate other EDAC 337 series variants with matching 10-position counts and 3.96 mm pitch for potential compatibility.
