337-017-540-607

Edgeboard Connectors Overview

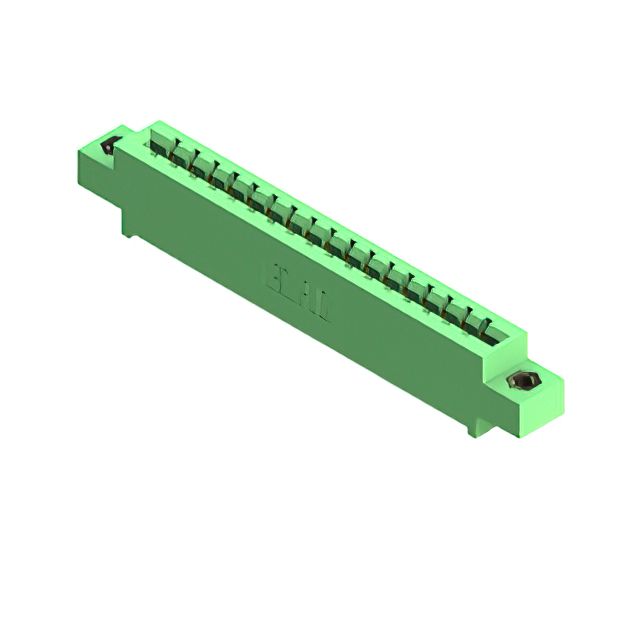

The EDAC Inc. 337-017-540-607 is a standard card edge connector socket featuring 17 positions in a single row configuration. It utilizes a 3.96 mm (0.156 inch) pitch and supports a maximum current rating of 3 A. The component is designed for through-hole vertical mounting with wire wrap termination types. Gold plating on copper alloy contacts ensures reliable signal transmission, while the thermoplastic polyester housing provides structural integrity within an operating temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Single-row female contact configuration for standard card edge insertion
• Wire wrap termination style for secure PCB integration
• Gold-plated copper alloy contacts for corrosion resistance
• Vertical through-hole mounting orientation

Edgeboard Connectors Applications

• Industrial control system interconnects
• Telecommunications equipment backplanes
• Medical device circuit board interfaces
• Consumer electronics module connections

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact flange features and terminal variations. Ensure compatibility with target PCB thickness specifications before procurement. Cross-reference manufacturer datasheets for updated environmental compliance status and lead time requirements directly from authorized sources.

Edgeboard Connectors Selection Notes

Select this component when a single-row interface with 17 positions is required. Confirm that the 3.96 mm pitch aligns with the mating card edge design. Verify that the wire wrap termination method matches the assembly process capabilities. Ensure the thermal rating meets the operational environment constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 337 series of standard card edge connectors. The series offers various position counts and termination styles. The 337-017-540-607 specifically denotes a 17-position variant with green insulation and threaded insert flanges. It serves as a reliable connection point for modular electronic assemblies requiring robust mechanical retention.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for verified equivalents. Generic cross-references may not match the specific flange threading or termination geometry. Validate dimensional drawings and electrical ratings before substituting.
