337-024-521-104

Edgeboard Connectors Overview

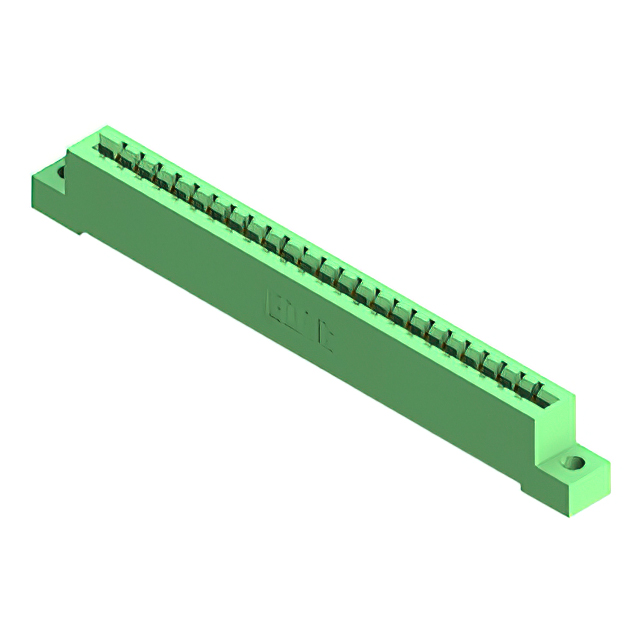

The EDAC Inc. 337-024-521-104 is a standard card edge connector socket featuring 24 positions with a 3.96 mm (0.156 inch) pitch. Designed for single-edge, non-specified board types, it utilizes copper alloy contacts with gold plating to ensure reliable signal transmission. The component supports a current rating of 3 A and operates within a temperature range of -40°C to +105°C. It employs a through-hole termination style for secure PCB mounting and features a thermoplastic polyester housing.

Edgeboard Connectors Feature Summary

• Single-row female contact configuration designed for single-edge card insertion
• Gold-plated copper alloy contacts provide corrosion resistance and stable conductivity
• Thermoplastic polyester insulator ensures durability across wide thermal ranges
• Through-hole termination facilitates robust mechanical attachment to printed circuit boards

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Test and measurement instrument modules
• Embedded computing hardware interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact pin count, termination style, and plating thickness. Ensure compatibility with target PCB thickness specifications before procurement. Confirm RoHS compliance status and lead time requirements directly with authorized distributors or the manufacturer to align with production schedules.

Edgeboard Connectors Selection Notes

Select this component when a 24-position interface with a 3.96 mm pitch is required for single-edge applications. Consider the 3 A current rating and -40°C to +105°C operating range for environmental suitability. Verify that the through-hole mounting style and vertical orientation match the mechanical design constraints of the host assembly.

Edgeboard Connectors Part Context

This part belongs to the EDAC 337 Series, which offers various position counts and termination options for card edge applications. The series is characterized by its standardized 3.96 mm spacing and robust construction suitable for high-reliability environments. Variations in the suffix typically denote differences in contact length, plating, or flange configurations.

Edgeboard Connectors Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Cross-reference with other EDAC 337 series variants only if mechanical dimensions and electrical ratings are identical.
