341-009-500-108

Edgeboard Connectors Overview

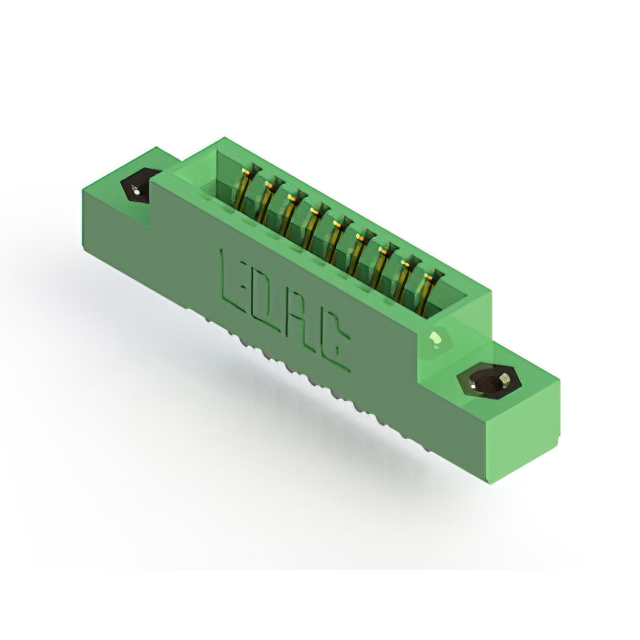

The EDAC Inc. part number 341-009-500-108 is a card edge connector from the 341 series, designed for single-edge applications. It features 9 positions with a female contact type and a 0.100 inch (2.54mm) pitch. The connector utilizes gold-plated copper alloy contacts housed in a green thermoplastic polyester insulator. It supports a board thickness range of 0.054 to 0.070 inches (1.37mm to 1.78mm). The component operates within a temperature range of -40°C to +105°C and meets RoHS3 standards.

Edgeboard Connectors Feature Summary

• Single-edge receptacle design for non-specified card types
• Gold-plated half-bevel contacts for reliable signal transmission
• Thermoplastic polyester housing for thermal stability
• Compliant with RoHS3 environmental regulations

Edgeboard Connectors Applications

• Industrial control system interface connections
• Telecommunications equipment backplanes
• Consumer electronics module interconnects
• Automotive electronic control unit interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to ensure correct configuration. Confirm that the target PCB edge thickness falls within the specified 0.054 to 0.070 inch range for proper mechanical engagement. Check for updated compliance documentation such as RoHS3 status prior to final procurement approval.

Edgeboard Connectors Selection Notes

Select this component when a single-row, low-pin-count connection is required for standard thickness boards. Ensure the mating card edge profile matches the connector's acceptance criteria. Consider the operating temperature range and material compatibility with the assembly environment during the selection process.

Edgeboard Connectors Part Context

This component belongs to the EDAC 341 series, which offers various configurations for card edge applications. The series provides options for different pin counts, row configurations, and termination styles. This specific model represents a standard single-edge variant within that broader product family.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC 341 Series Ordering Guide for direct substitute part numbers. Verify dimensional compatibility and electrical specifications before substituting with other manufacturers' components.
