342-084-521-207

Edgeboard Connectors Overview

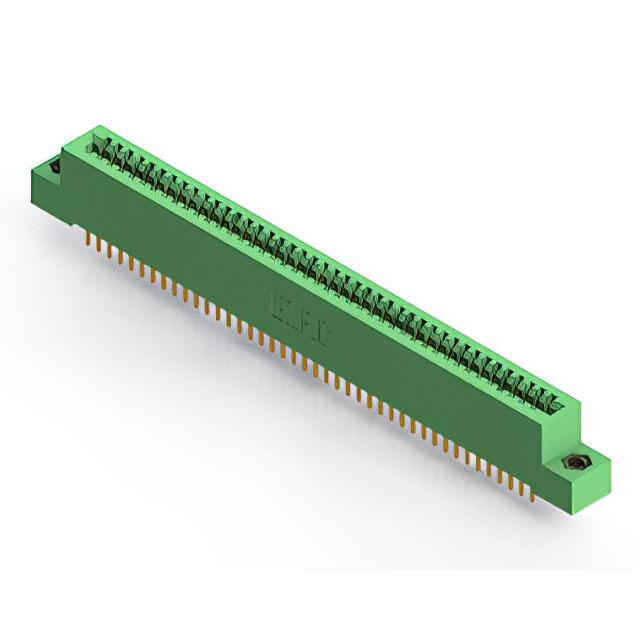

The EDAC Inc. model 342-084-521-207 is a standard card edge connector from the 342 series, designed for panel mount installation at a right angle. It features 84 positions with a 2.54 mm pitch and supports a board thickness of 1.57 mm. The contacts are gold-plated copper alloy with a solder pin termination type. Rated for 3 A current, it utilizes thermoplastic polyester housing material and offers an insulation resistance of 5 GOhms.

Edgeboard Connectors Feature Summary

• Right-angle panel mount configuration for secure structural integration
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Thermoplastic polyester housing provides thermal stability

Edgeboard Connectors Applications

• Panel-mounted electronic assemblies requiring right-angle connectivity
• Industrial control systems utilizing standard card edge interfaces
• Equipment needing robust 84-position connection points

Edgeboard Connectors Procurement Notes

Verify the specific suffix 207 against official EDAC documentation to confirm exact plating thickness and housing color specifications. Ensure compatibility with 1.57 mm PCB thickness and right-angle mounting requirements before procurement. Confirm RoHS compliance status through the manufacturer's latest datasheet.

Edgeboard Connectors Selection Notes

Select this component when a right-angle, panel-mount solution is required for high-density connections. The 84-position count suits applications needing extensive I/O in a single interface. Verify that the 2.54 mm pitch aligns with the target PCB design and that the 3 A rating meets the electrical load requirements.

Edgeboard Connectors Part Context

This part belongs to the EDAC 342 series of standard card edge connectors. The series is characterized by green thermoplastic polyester housings and 0.100-inch (2.54 mm) spacing. These connectors are engineered for durability and consistent performance in demanding industrial environments.

Edgeboard Connectors Replacement Considerations

Cross-reference with other 342-series variants for position count differences. Verify mechanical dimensions and pinout configurations match exactly before substituting.
