345-010-525-178

Edgeboard Connectors Overview

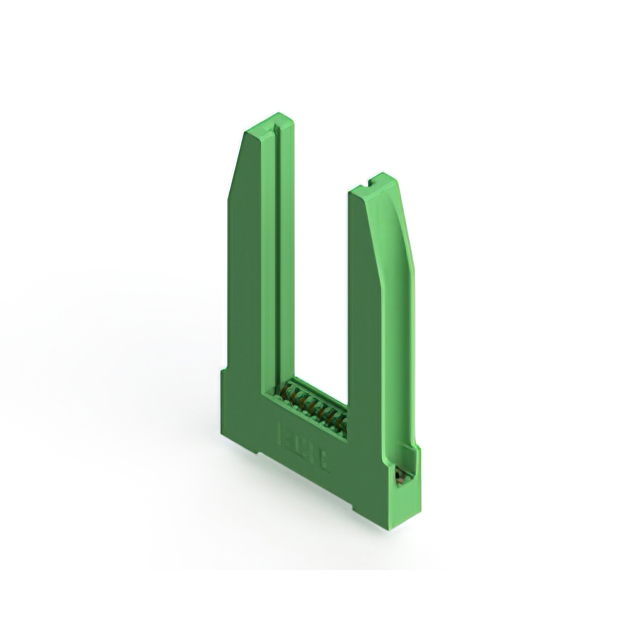

The EDAC Inc. 345-010-525-178 is a standard card edge connector socket featuring 10 positions with a 0.100-inch (2.54 mm) pitch. Designed for through-hole vertical mounting, it utilizes copper alloy contacts with gold plating to ensure reliable signal transmission. The component supports single-sided card edges and accommodates board thicknesses within specified mechanical limits. It operates reliably across a temperature range of -40°C to 105°C, providing a robust interconnection solution for electronic assemblies requiring secure board-to-board connectivity.

Edgeboard Connectors Feature Summary

• Vertical through-hole mounting configuration for stable PCB integration
• Gold-plated copper alloy contacts ensuring durable electrical performance
• Single female contact design compatible with non-specified single-edge cards

Edgeboard Connectors Applications

• Motherboard to daughterboard signal interconnection
• Extender board interface connections
• Power connection points in modular electronic systems

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC datasheet to confirm exact termination style, flange options, and insulation material properties. Ensure the selected variant matches the required board thickness and mounting orientation for the target application. Cross-reference the manufacturer part number with authorized distributors to confirm current availability and compliance with relevant environmental standards such as RoHS.

Edgeboard Connectors Selection Notes

Select this component when a low-profile, single-row female connector is required for vertical PCB mounting. The 0.100-inch pitch suits general-purpose signal routing where standard spacing is necessary. Consider the gold contact finish for applications demanding corrosion resistance and repeated mating cycles. Verify that the housing material and thermal rating align with the operational environment and soldering processes used in the assembly line.

Edgeboard Connectors Part Context

This part belongs to the EDAC 345 series, which provides engineered solutions for power and signal communication between motherboards, daughterboards, and extenders. The series offers various configurations including different row counts, termination styles, and mounting hardware options. These connectors are designed to meet rigorous quality standards for industrial and commercial electronic applications requiring reliable interconnectivity.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC cross-reference documentation for verified substitute part numbers. Ensure any replacement maintains identical pin count, pitch, and mounting style. Verify compatibility with existing board layouts and mating card specifications before implementation.
