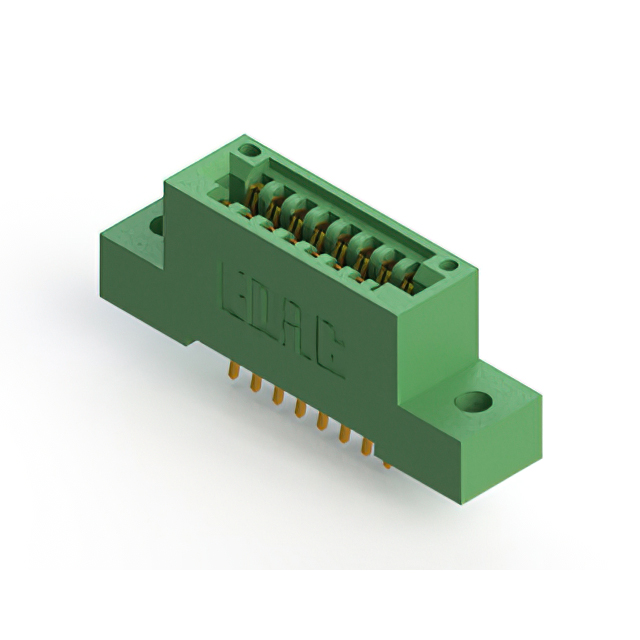

345-016-556-202 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 16POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 345-016-556-202
- Description：CONN EDGE DUAL FMALE 16POS 0.100
- Series：345
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：8
- Number of Positions：16
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：2
- Pitch：0.100" (2.54mm)
- Read Out：Dual
- Features：Card Extender
- Mounting Type：Board Edge, Straddle Mount
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Flush Mount, Top Opening, Unthreaded, 0.128" (3.25mm) Dia
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 345-016-556-202
Edgeboard Connectors Overview
The EDAC Inc. 345-016-556-202 is a standard card edge connector featuring 16 positions with a 2.54 mm pitch. Designed for straddle mount installation at a straight angle, it accommodates a board thickness of 1.57 mm. The contacts are made of copper alloy with gold plating and utilize solder pin termination. Rated for 3 A current, the housing is constructed from thermoplastic polyester. This dual-edge female connector operates within a temperature range of -40°C to +105°C and includes flanges for secure mounting.
Edgeboard Connectors Feature Summary
- Dual-edge female contact configuration for reliable signal transmission
- Straddle mount design ensures stable mechanical positioning
- Gold-plated copper alloy contacts provide corrosion resistance
- Thermoplastic polyester housing offers thermal stability
Edgeboard Connectors Applications
- Industrial control systems requiring robust interconnects
- Automotive electronics modules
- Communication equipment backplanes
- Medical device circuit boards
Edgeboard Connectors Procurement Notes
Verify the specific manufacturer part number against official EDAC documentation to confirm compatibility. Ensure that the required flange style and termination type match the target PCB layout. Confirm RoHS compliance status through the latest datasheet before finalizing procurement decisions.
Edgeboard Connectors Selection Notes
Select this component when a 16-position dual-edge connector with straddle mounting is required. Verify that the PCB thickness aligns with the specified 1.57 mm requirement. Ensure the operating environment stays within the -40°C to +105°C range and that the 3 A current rating meets the circuit demands.
Edgeboard Connectors Part Context
This component belongs to the EDAC 345 series of standard card edge connectors. It shares common specifications such as 2.54 mm pitch and thermoplastic polyester housing with other models in the family, but differs in position count and specific mounting features.
Edgeboard Connectors Replacement Considerations
Public confirmed substitute part numbers are not available in the provided source material. Consult official EDAC documentation for potential cross-references or compatible alternatives.
