345-032-520-402

$5.16

Description：CONN EDGE SINGLE FML 32POS 0.100
Series：345
Mfr：EDAC Inc.
Package：Box

SKU:b22bb5c21aab Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

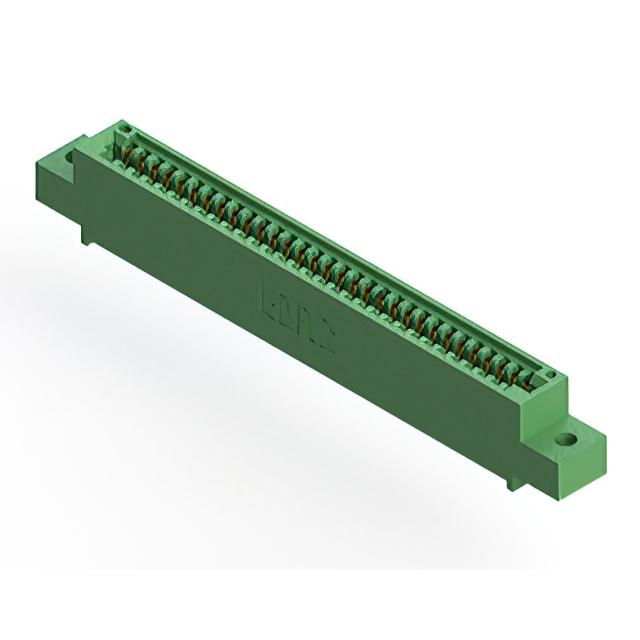

345-032-520-402 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 32POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 345-032-520-402

Description：CONN EDGE SINGLE FML 32POS 0.100
Series：345
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：32
Number of Positions：32
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.100" (2.54mm)
Read Out：Single
Features：-
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Green
Flange Feature：Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 345-032-520-402

345-032-520-402

Edgeboard Connectors Overview

The EDAC Inc. 345-032-520-402 is a standard single-row card edge connector featuring 32 positions with a 0.100-inch (2.54 mm) pitch. Designed for through-hole mounting, it utilizes gold-plated copper alloy contacts and a green thermoplastic polyester insulator. The unit supports board thicknesses of 1.57 mm and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

Single-sided female contact configuration for non-specified edge boards
Through-hole termination method ensuring secure PCB attachment
Gold-plated contacts providing reliable electrical conductivity
Integrated flanges with top-mounting openings for mechanical stability

Edgeboard Connectors Applications

Medical interconnect systems requiring durable connections
Agricultural technology equipment operating in harsh environments
Industrial control panels utilizing standard card edge interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact physical dimensions and terminal configurations. Ensure compatibility with target PCB stack-up and mating card thickness specifications before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single-row interface with 32 pins is required. Confirm that the 0.100-inch pitch aligns with the design layout. Verify that the through-hole mounting style and vertical orientation fit the assembly constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 345 series, which provides a comprehensive range of card edge connectors. The series includes various row counts and termination styles designed for robust performance in demanding industrial and medical applications.

Edgeboard Connectors Replacement Considerations

Consult official EDAC cross-reference guides for direct substitutes. Verify pin count, pitch, and mounting style compatibility before considering alternative models from other manufacturers.
