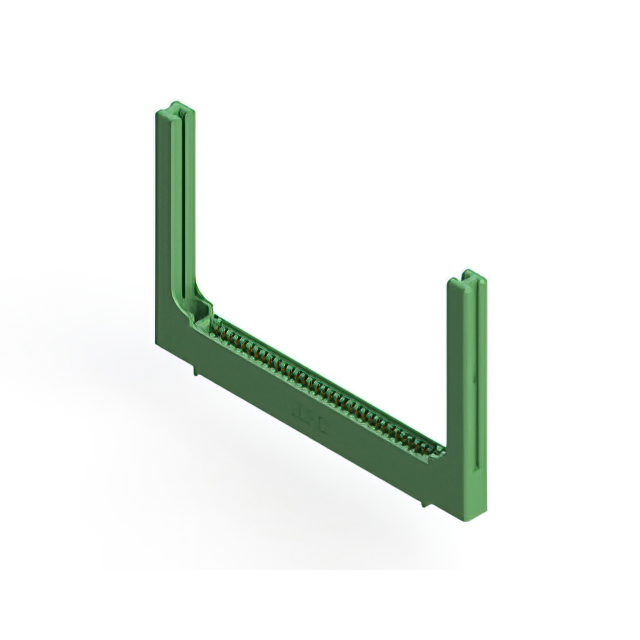

345-033-520-458 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 33POS 0.100. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for 345-033-520-458
- Description：CONN EDGE SINGLE FML 33POS 0.100
- Series：345
- Mfr：EDAC Inc.
- Package：Box
- Card Type：Non Specified - Single Edge
- Gender：Female
- Number of Positions/Bay/Row：33
- Number of Positions：33
- Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows：1
- Pitch：0.100" (2.54mm)
- Read Out：Single
- Features：Card Guides
- Mounting Type：Through Hole
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：10.0µin (0.25µm)
- Contact Type：Cantilever
- Color：Green
- Flange Feature：Top Mount Opening, Threaded Insert, 4-40
- Operating Temperature：-40°C ~ 105°C
Edgeboard Connectors datasheet and documents for 345-033-520-458
Edgeboard Connectors Overview
The EDAC Inc. 345-033-520-458 is a standard card edge connector from the 345 series, designed for through-hole mounting. It features 33 positions with a female contact type and a 0.100" (2.54mm) pitch. The connector supports single-edge board configurations and utilizes cantilever contacts made of copper alloy with gold plating. It accommodates board thicknesses ranging from 0.054" to 0.070" (1.37mm to 1.78mm). The unit operates within a temperature range of -40°C to 105°C and includes flanges with top-mounting openings and 4-40 threaded inserts.
Edgeboard Connectors Feature Summary
- Single-edge female connector configuration for non-specified card types
- Cantilever contact design ensures reliable mating engagement
- Gold-plated copper alloy terminals provide corrosion resistance
- Integrated flange system with top-mounting openings and threaded inserts
Edgeboard Connectors Applications
- Industrial control systems requiring robust interconnects
- Medical equipment interface modules
- Agricultural technology electronic assemblies
- General-purpose circuit board edge connections
Edgeboard Connectors Procurement Notes
Verify that the specific part number matches the required single-edge configuration and 33-position count. Confirm compatibility with the target PCB thickness range of 0.054" to 0.070". Ensure the mounting style aligns with through-hole assembly processes. Check for RoHS compliance requirements if applicable to the end product.
Edgeboard Connectors Selection Notes
Select this component when a single-row female connector is needed for boards up to 0.070" thick. The 0.100" pitch suits standard density layouts. Consider the flange features for secure mechanical attachment. Verify that the operating temperature range meets environmental demands.
Edgeboard Connectors Part Context
This component belongs to the EDAC 345 series of standard card edge connectors. The series offers various position counts and edge configurations. The 345-033 variant specifically addresses applications requiring 33 contacts in a single row format.
Edgeboard Connectors Replacement Considerations
Consult official EDAC documentation for direct substitutes within the 345 series. Verify pin count, pitch, and mounting style compatibility before considering alternative models.
