Edgeboard Connectors Overview

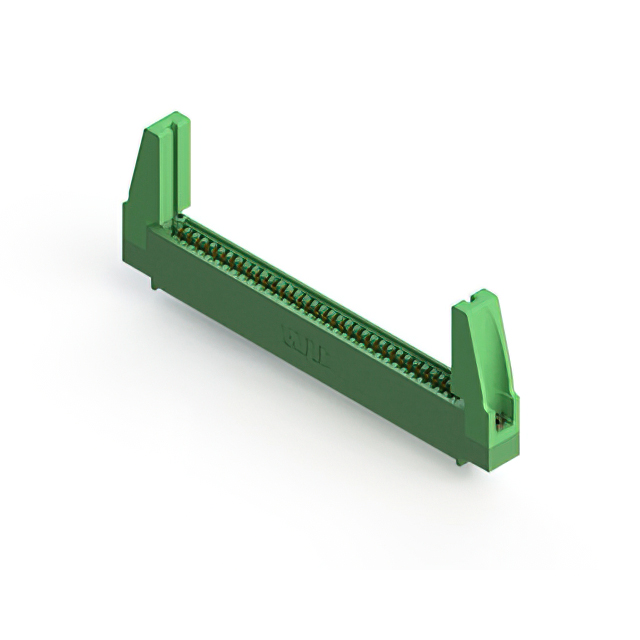

The EDAC Inc. 345-035-542-488 is a standard card edge connector featuring a single row of 35 positions with a 2.54 mm pitch. It utilizes wire wrap termination and supports a maximum current rating of 3 A. The component is designed for panel mounting at a vertical angle, accommodating a board thickness of 1.57 mm. Contacts are gold-plated copper alloy, housed in thermoplastic polyester.

Edgeboard Connectors Feature Summary

• Single-row configuration with 35 positions
• Gold-plated copper alloy contacts
• Wire wrap termination style
• Thermoplastic polyester housing

Edgeboard Connectors Applications

• General electronic interconnect systems
• Industrial control panels
• Telecommunications equipment
• Computing hardware interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact plating and orientation details. Ensure compatibility with the target PCB thickness of 1.57 mm. Confirm that the wire wrap termination method aligns with the assembly process. Check regional availability as distribution may be restricted in certain areas.

Edgeboard Connectors Selection Notes

Select this model when a vertical, panel-mount solution is required for single-sided card edges. The 35-position count suits moderate density applications. Verify that the 3 A current rating meets circuit requirements. Consider the wire wrap termination if soldering is not preferred for the connection method.

Edgeboard Connectors Part Context

This component belongs to the EDAC 345 series of standard card edge connectors. The series offers various position counts and mounting styles. The 345-035-542-488 variant specifically addresses needs for vertical panel integration with reliable wire wrap connections.

Edgeboard Connectors Replacement Considerations

Cross-reference other EDAC 345 series parts with matching 35 positions and 2.54 mm pitch. Verify identical mounting angles and termination types before substitution.
