345-088-500-508

Edgeboard Connectors Overview

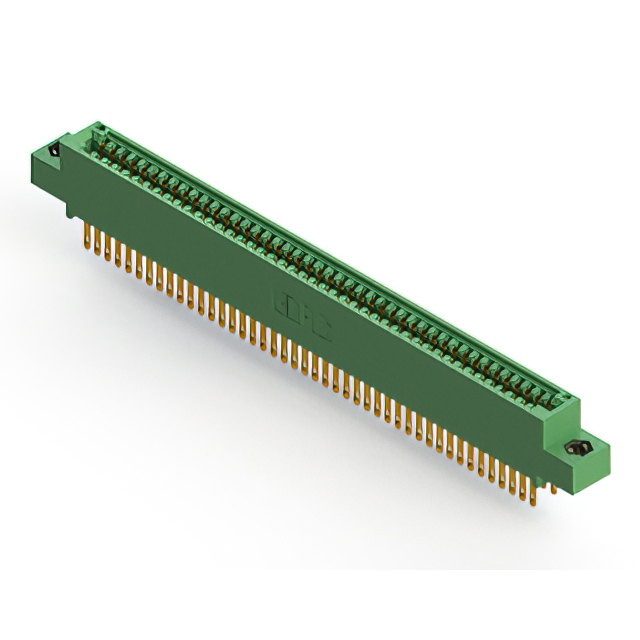

The EDAC Inc. 345-088-500-508 is a dual-edge female card edge connector designed for vertical panel mounting. It features 88 positions with a 0.100-inch (2.54mm) pitch across two rows. The contacts are made of copper alloy with a gold plating thickness of 10.0µin (0.25µm). The housing is green thermoplastic polyester, rated for operation between -40°C and +105°C. It accepts board thicknesses from 0.054" to 0.070" (1.37mm to 1.78mm) and utilizes solder pin termination.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for non-specified cards
• Vertical panel mount installation style with flange features
• Gold-plated copper alloy contacts for reliable signal transmission
• Thermoplastic polyester insulation material for durability

Edgeboard Connectors Applications

• Industrial control systems requiring high-density I/O connections
• Medical equipment interconnect solutions
• Agricultural technology hardware in harsh environments
• General-purpose electronic board-to-board interfacing

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact flange dimensions and termination styles. Ensure compatibility with target PCB thickness ranges before procurement. Confirm RoHS3 compliance status through current manufacturer datasheets. Cross-reference part numbers with authorized distributors to avoid counterfeit components. Validate environmental ratings against operational requirements.

Edgeboard Connectors Selection Notes

Select this component when a high-pin-count dual-edge interface is required for vertical panel integration. The 0.100-inch pitch accommodates standard board layouts while providing robust mechanical stability. Consider the operating temperature range and insulation material properties for long-term reliability in demanding applications. Verify that the gold plating thickness meets signal integrity requirements for the intended frequency range.

Edgeboard Connectors Part Context

This part belongs to the EDAC 345 series of standard card edge connectors. The series offers various position counts and termination options for diverse connectivity needs. EDAC specializes in interconnect solutions for medical and agricultural sectors, emphasizing durability and performance in challenging conditions. The 345 series is widely used in industrial and specialized electronic applications.

Edgeboard Connectors Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult EDAC technical support for cross-referencing alternatives with identical electrical and mechanical specifications.
