345-106-560-888

Edgeboard Connectors Overview

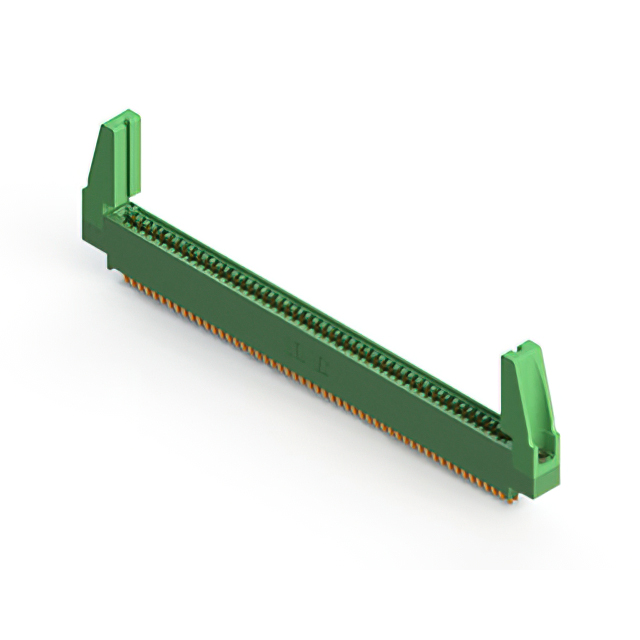

The EDAC Inc. 345-106-560-888 is a standard card edge connector designed for dual-edge board applications. It features 106 positions with a 0.100 inch (2.54mm) pitch and utilizes female contacts. The connector employs wire wrap termination and includes flanges for secure mounting. Gold plating ensures reliable contact performance, while the green thermoplastic polyester insulator provides durability across an operating temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Dual-edge configuration supporting non-specified card types
• Wire wrap termination for robust circuit connection
• Gold-plated copper alloy contacts for conductivity
• Flanged design with top-mounting openings

Edgeboard Connectors Applications

• Medical interconnect systems
• Agricultural technology equipment
• Industrial control panels

Edgeboard Connectors Procurement Notes

Verify the complete part number including suffixes against official EDAC documentation to ensure correct pin count and termination style. Confirm RoHS compliance status and specific flange configurations required for your enclosure. Cross-reference datasheet mechanical drawings for precise PCB footprint dimensions before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a high-density dual-edge interface is required with wire wrap capabilities. Ensure the target printed circuit board thickness accommodates the connector's guide rails. Verify that the application environment falls within the specified thermal limits and that the gold contact finish meets corrosion resistance requirements.

Edgeboard Connectors Part Context

This model belongs to the EDAC 345 series of standard card edge connectors. The series offers various position counts and termination options tailored for diverse industrial and commercial electronics. The 345 series is characterized by its durable construction and compatibility with standard PCB manufacturing processes.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for direct equivalents. Verify that any alternative maintains identical 0.100 inch pitch, dual-edge geometry, and wire wrap termination specifications to ensure mechanical and electrical compatibility.
