346-041-521-607

Edgeboard Connectors Overview

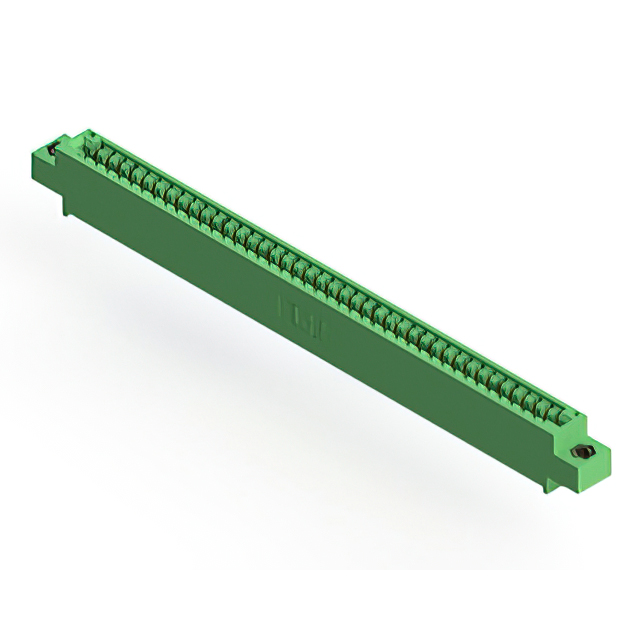

The EDAC Inc. 346-041-521-607 is a standard card edge connector receptacle featuring 41 positions with a 0.125-inch (3.18 mm) pitch. It utilizes a single termination row and employs gold-plated copper alloy contacts for reliable signal transmission. The housing is constructed from thermoplastic polyester, providing durability in electronic assemblies. This component supports vertical through-hole mounting and is designed for secure connection to printed circuit boards.

Edgeboard Connectors Feature Summary

• Gold-plated copper alloy contacts ensure stable electrical performance
• Thermoplastic polyester housing provides structural integrity
• Single termination row simplifies PCB layout requirements

Edgeboard Connectors Applications

• Industrial control systems
• Consumer electronics
• Automotive systems
• IoT devices
• Medical equipment

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against official EDAC documentation to confirm exact pin count, plating thickness, and termination style. Ensure compatibility with target board thickness and mating card dimensions before procurement. Cross-reference datasheet specifications for environmental ratings and mechanical endurance cycles to validate suitability for the intended operational environment.

Edgeboard Connectors Selection Notes

Select this component based on the required 41-position count and 0.125-inch pitch specification. Evaluate the single-row termination configuration against available PCB space constraints. Confirm that the vertical through-hole mounting style aligns with the assembly process and mechanical stability requirements of the final product design.

Edgeboard Connectors Part Context

This part belongs to the EDAC 346 series of standard card edge connectors. The series offers various position counts and mounting options, including wire wrap and solder terminations. These connectors are engineered for general-purpose electronic applications requiring robust interconnection solutions across multiple industries.

Edgeboard Connectors Replacement Considerations

Consult official EDAC substitution guides for compatible alternatives. Verify identical pitch, position count, and termination type when evaluating substitute parts to maintain mechanical and electrical interface consistency.
