356-006-421-102

Edgeboard Connectors Overview

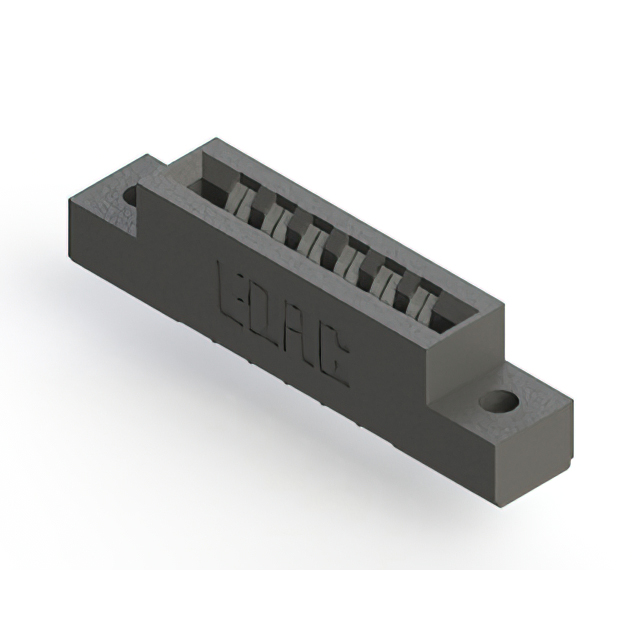

The EDAC Inc. part number 356-006-421-102 is a dual-edge female card edge connector designed for through-hole mounting. It features 12 positions arranged in two rows of six contacts, with a contact spacing of 0.156 inches (3.96 mm). The connector utilizes tin-plated copper alloy terminals and a black thermoplastic polyester insulator body. It accepts printed circuit boards with thicknesses ranging from 0.054 to 0.070 inches (1.37 mm to 1.78 mm). The component operates within a temperature range of -40°C to 105°C and complies with RoHS 3 standards.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for secure board insertion
• Through-hole solder termination for reliable PCB attachment
• Tin-plated copper alloy contacts for conductivity
• Black thermoplastic polyester insulator housing

Edgeboard Connectors Applications

• Industrial control systems
• Telecommunications equipment
• Automotive electronics
• Test and measurement instruments

Edgeboard Connectors Procurement Notes

Verify the specific manufacturer datasheet for the 356 series to confirm mechanical dimensions and mating force requirements. Ensure the target PCB design accommodates the specified 0.156-inch pitch and board thickness tolerance. Confirm compliance with project-specific environmental regulations such as RoHS 3 and REACH status before finalizing procurement.

Edgeboard Connectors Selection Notes

Select this connector when a dual-edge female interface with a 0.156-inch pitch is required. Consider the through-hole mounting style and tin plating for general-purpose applications. Evaluate the operating temperature range and insulator material properties against environmental conditions. Compare alternative series within the EDAC portfolio if different row counts or board thicknesses are needed.

Edgeboard Connectors Part Context

This component belongs to the EDAC 356 series of card edge connectors, characterized by a 0.156-inch centerline spacing and a black insulator body. The series offers various position counts and mounting options for standard edgeboard applications. The 356-006-421-102 variant specifically provides a 12-position dual-edge configuration suitable for moderate-density interconnects.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 356 series variants for different pin counts. Verify compatibility with existing PCB layouts and mating card specifications. Check for equivalent connectors from other manufacturers offering similar pitch and dual-edge female configurations.
