357-007-459-158

Edgeboard Connectors Overview

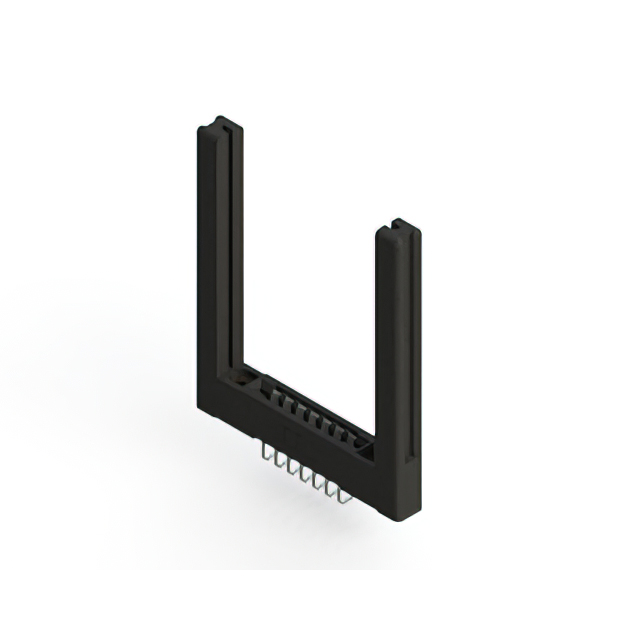

The EDAC Inc. 357-007-459-158 is a single-edge card edge connector designed for vertical board-to-board connections. It features seven positions with a 0.156-inch (3.96 mm) pitch and supports PCBs up to 1.57 mm thick. The contacts utilize semi-bellows contact types plated with tin, housed in black insulators. This component operates within a temperature range of -40°C to 105°C and includes flush mount flanges with top openings and threaded inserts compatible with 4-40 fasteners.

Edgeboard Connectors Feature Summary

• Vertical mounting configuration for direct board insertion
• Semi-bellows contact design ensuring reliable signal transmission
• Flush mount flange system with top opening and threaded insert provisions

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Medical equipment internal circuitry connections
• Automotive electronics modules
• Communication infrastructure hardware

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm plating material and flange configurations. Ensure compatibility with the target PCB thickness and mounting hole specifications. Confirm RoHS compliance status if required by project regulations. Cross-reference the part number with official EDAC documentation to validate availability and lead times through authorized channels.

Edgeboard Connectors Selection Notes

Select this connector when a vertical, single-edge interface is required with specific flange mounting needs. The 0.156-inch pitch dictates the trace spacing on the mating card. Consider the operating temperature range and environmental sealing requirements. Verify that the 4-40 threaded insert capability aligns with the mechanical assembly constraints of the final product enclosure.

Edgeboard Connectors Part Context

This component belongs to the EDAC 357 series of card edge connectors, characterized by a 0.156-inch (3.96 mm) contact pitch. The series offers various position counts and termination styles. The 357 series is engineered for high-reliability applications across industrial, medical, and communication sectors, providing standardized form factors for consistent board-to-board connectivity solutions.

Edgeboard Connectors Replacement Considerations

Direct substitutes are not explicitly confirmed in public documentation. Evaluate other EDAC 357 series variants with matching pitch and position count. Verify mechanical dimensions and electrical ratings before considering alternative manufacturers' components.

Edgeboard Connectors FAQ

What is the contact type for this connector?

The connector utilizes semi-bellows contact types.

Does this connector support flush mounting?

Yes, it features a flush mount flange with a top opening and threaded insert.
