357-084-422-207

Edgeboard Connectors Overview

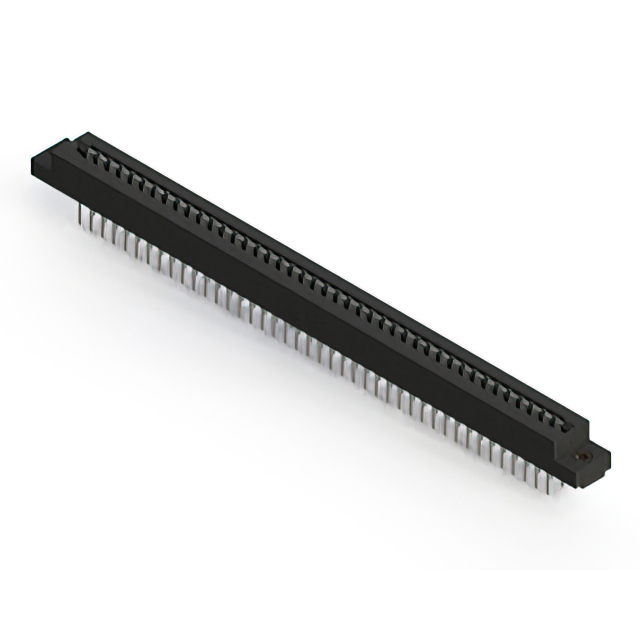

The EDAC Inc. 357-084-422-207 is a standard card edge connector featuring 84 positions arranged in a dual-row configuration. It utilizes a 3.96 mm (0.156 inch) pitch and is designed for vertical panel mount installation. The contacts are tin-plated copper alloy, housed in black thermoplastic polyester. This component supports wire wrap termination and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design for robust board interface
• Vertical panel mount orientation for secure structural integration
• Wire wrap termination method for reliable circuit connection

Edgeboard Connectors Applications

• Industrial control systems requiring high-density interconnects
• Medical equipment internal module connections
• Agricultural technology hardware interfaces

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to ensure compatibility with required plating thickness and flange configurations. Confirm that the tin-plated contact finish meets the environmental corrosion resistance requirements for the intended application environment before finalizing procurement.

Edgeboard Connectors Selection Notes

Select this model when a high-pin-count, dual-row card edge solution is required with a 3.96 mm pitch. Ensure the host PCB design accommodates the vertical mounting style and wire wrap termination process. Verify that the operating temperature range aligns with the system's thermal profile.

Edgeboard Connectors Part Context

This part belongs to the EDAC 357 series of standard card edge connectors. The series offers various position counts and termination options. The 357-084-422-207 specifically provides an 84-position configuration suitable for applications needing substantial signal or power routing through a single edge interface.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 357 series parts with matching 84-position, dual-row, vertical specifications. Cross-reference pin count, pitch, and termination type to ensure mechanical and electrical compatibility.
