379-032-544-207

Edgeboard Connectors Overview

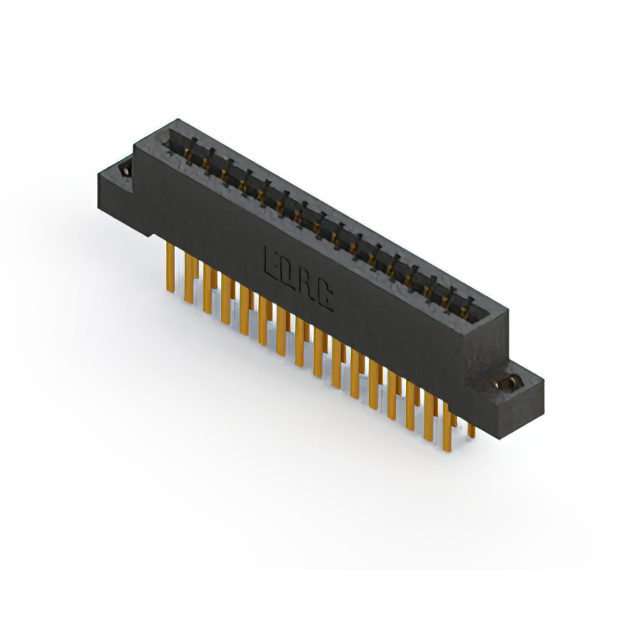

The EDAC Inc. 379-032-544-207 is a standard card edge connector designed for dual-edge board insertion. It features 32 positions with a contact spacing of 0.150 inches (3.81mm). The connector utilizes gold-plated cantilever contacts and has a black insulation material. It supports a PCB thickness of 1.57 mm and operates within a temperature range of -40°C to 105°C. The unit includes flange features for flush mounting, top opening, and M3 threaded inserts.

Edgeboard Connectors Feature Summary

• Dual-edge female connector design for secure board retention
• Gold-plated cantilever contacts ensure reliable signal transmission
• Integrated flange with M3 threaded inserts for flush mounting stability

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Medical equipment needing reliable signal pathways
• Agricultural technology hardware exposed to harsh environments

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the official EDAC datasheet to confirm mechanical dimensions and plating specifications. Ensure compatibility with the target PCB stack-up and hole pitch. Confirm that the M3 threaded insert requirements align with the assembly design. Cross-reference the RoHS status with current regulatory requirements for the destination market. Validate the operating temperature range against the environmental conditions of the final application.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge card edge connector with 32 positions and 3.81mm spacing is required. The choice is driven by the need for flush mounting capabilities using M3 threaded inserts. Consider the gold-plated cantilever contact type for durability. Evaluate the -40°C to 105°C operating range against thermal constraints. Ensure the black insulation color meets aesthetic or identification standards.

Edgeboard Connectors Part Context

This part belongs to the EDAC Standard Card Edge Connectors family. It is engineered for high-reliability applications in medical and agricultural sectors. The series offers various position counts and spacing options. The 379 series specifically addresses needs for robust mechanical retention and consistent electrical performance in demanding industrial settings.

Edgeboard Connectors Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify mechanical fit and electrical specifications before considering alternative sources. Consult EDAC technical support for direct equivalents if this specific configuration is unavailable.
