387-030-521-658

Edgeboard Connectors Overview

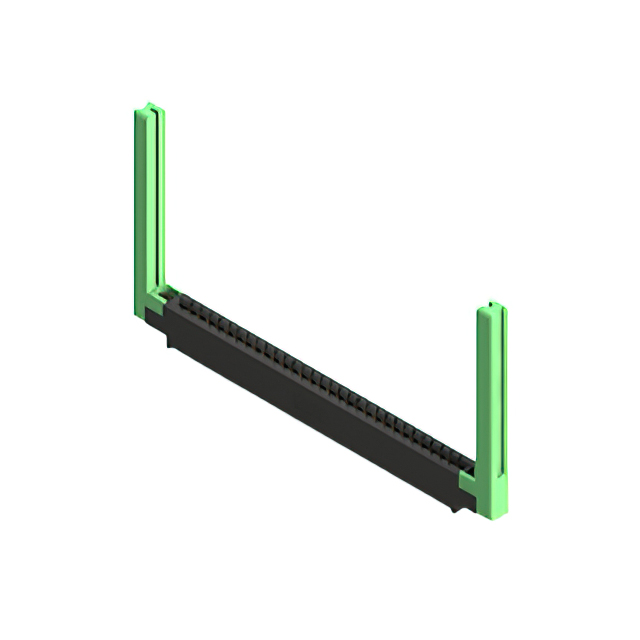

The EDAC Inc. 387-030-521-658 is a single-row card edge connector from the 387 Series, designed for through-hole mounting. It features 30 female positions with a 0.156-inch (3.96 mm) contact spacing. The connector utilizes cantilever spring contacts made of copper alloy, finished with 10.0 µin (0.25 µm) gold plating. It accommodates PCB thicknesses ranging from 0.054 to 0.070 inches (1.37 mm to 1.78 mm). The housing is constructed from black thermoplastic polyester, and it includes flanges with top mount openings and 4-40 threaded inserts for secure installation.

Edgeboard Connectors Feature Summary

• Cantilever spring contacts ensure reliable electrical connection for single-edge cards
• Thermoplastic polyester insulation provides stability across specified temperature ranges
• Gold-plated terminals offer corrosion resistance and low contact impedance
• Integrated flanges with threaded inserts facilitate precise board alignment

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Test and measurement instrument modules
• Embedded computing hardware interfaces

Edgeboard Connectors Procurement Notes

Verify that the replacement part number matches the specific series, position count, and flange configuration. Confirm compliance with RoHS3 standards and check that the supplier provides official datasheets. Ensure the procurement channel is authorized to guarantee component authenticity and traceability.

Edgeboard Connectors Selection Notes

Select this connector when a single-row interface with 0.156-inch pitch is required. Consider the 30-position count and cantilever contact style for standard card applications. Verify that the target PCB thickness falls within the 1.37 mm to 1.78 mm range and that the operating temperature requirements align with the -40°C to 105°C specification.

Edgeboard Connectors Part Context

This component belongs to the EDAC 387 Series, which offers various configurations for card edge connections. The series is characterized by robust mechanical design and standardized dimensions. This specific model represents a high-density option within the family, providing a balance between pin count and spacing for versatile electronic assemblies.

Edgeboard Connectors Replacement Considerations

Direct substitutes include other EDAC 387 series variants with identical 30-position counts and flange specifications. Cross-referencing the basic product number 387-030 is essential to ensure mechanical compatibility.
