387-050-556-202

Edgeboard Connectors Overview

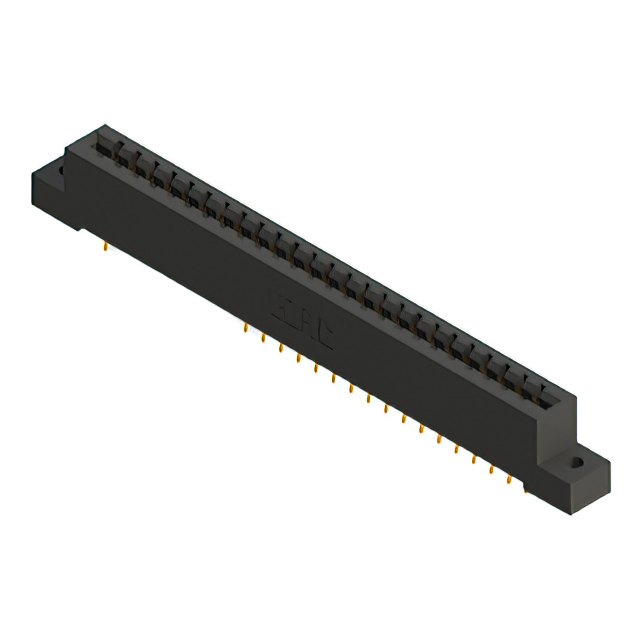

The EDAC Inc. 387-050-556-202 is a dual-edge card edge connector featuring 50 positions with a 0.156-inch (3.96 mm) pitch. Designed for through-hole mounting, it utilizes female contacts made of copper alloy with a gold plating thickness of 10.0 µin (0.25 µm). The housing is constructed from black thermoplastic polyester, supporting PCB thicknesses between 0.054 and 0.070 inches. It operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge configuration provides two rows of contacts for high-density signal routing.
• Gold-plated cantilever spring contacts ensure reliable electrical connection and corrosion resistance.
• Thermoplastic polyester insulation offers stable mechanical performance across wide temperature ranges.

Edgeboard Connectors Applications

• Industrial control system backplanes
• Telecommunications equipment interconnects
• Computing hardware module connections

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the manufacturer's official ordering guide to confirm flange style and contact length variations. Ensure compatibility with the target printed circuit board thickness specifications before finalizing procurement orders to guarantee proper mechanical fit and electrical integrity.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge interface with a standard 0.156-inch pitch is required. Confirm that the application environment falls within the specified operating temperature limits. Validate that the PCB design accommodates the through-hole termination method and the physical dimensions of the connector housing.

Edgeboard Connectors Part Context

This part belongs to the EDAC 387 series of standard card edge connectors. The series offers various position counts and configurations to support diverse electronic assembly requirements. It is designed for robust interconnection in demanding industrial and commercial environments.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 387 Series Ordering Guide for direct substitutes with differing pin counts or flange options. Cross-reference compatible parts from other manufacturers only if they match the exact pitch, row count, and mounting specifications.

Edgeboard Connectors FAQ

What is the contact material used in this connector?

The contacts are manufactured from copper alloy to provide necessary conductivity and mechanical strength.

Does this connector support single-sided or double-sided cards?

It is designed as a dual-edge connector, intended for use with double-sided card edge boards.
