387-086-560-804

Edgeboard Connectors Overview

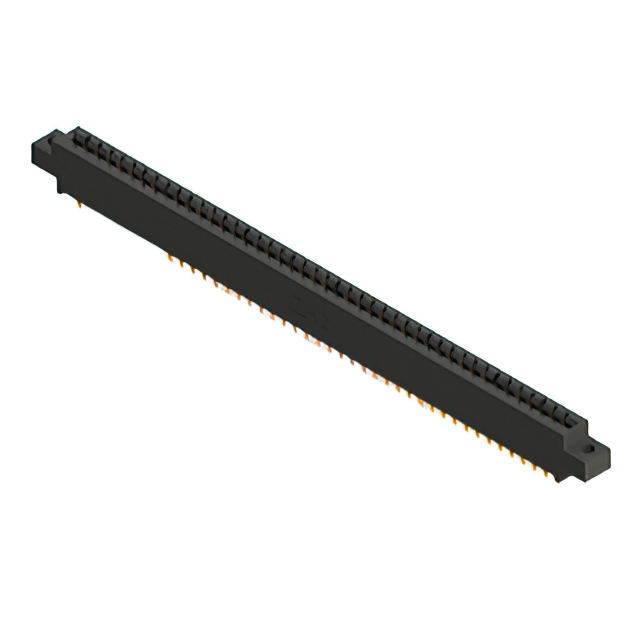

The EDAC Inc. 387-086-560-804 is a dual-edge female card edge connector designed for through-hole mounting. It features 86 positions with a 0.156-inch (3.96 mm) pitch and accepts board thicknesses of 0.062 inches (1.57 mm). The contacts are made of copper alloy with gold plating, rated for 3 A current and 5 GOhms insulation resistance. Operating temperature ranges from -40°C to +105°C.

Edgeboard Connectors Feature Summary

• Dual-edge female configuration for secure board insertion
• Gold-plated copper alloy contacts for reliable conductivity
• Through-hole termination style for stable PCB integration

Edgeboard Connectors Applications

• Industrial control systems
• Telecommunications equipment
• Automotive electronics modules

Edgeboard Connectors Procurement Notes

Verify the manufacturer part number against official EDAC documentation to ensure authenticity. Confirm that the specific suffix matches the required contact finish and housing material specifications. Check RoHS compliance status as per the latest datasheet revisions before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a dual-edge interface with high pin count is required. Ensure the target printed circuit board thickness aligns with the specified 1.57 mm dimension. Verify that the through-hole mounting style fits the assembly constraints and that the 3 A current rating meets the application's electrical demands.

Edgeboard Connectors Part Context

This connector belongs to the EDAC 387 series, which provides standard card edge solutions. The series offers various position counts and termination styles to support diverse electronic interconnection needs across multiple industrial and commercial sectors.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 387 Series Ordering Guide for direct substitutes. Compatible alternatives may include other 387-series variants with matching pin counts and pitch dimensions.
