391-038-520-201

Edgeboard Connectors Overview

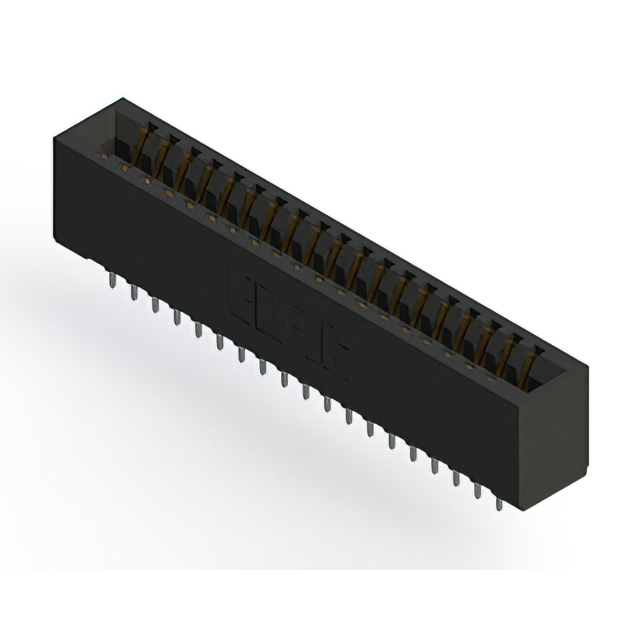

The EDAC Inc. 391-038-520-201 is a dual female card edge connector from the 391 series, designed for high-reliability applications. It features 38 positions with a 0.100-inch (2.54mm) contact spacing and a 0.140-inch (3.56mm) row pitch. The connector utilizes gold-plated copper alloy contacts with a 10.0µin thickness to ensure stable electrical performance. Constructed with a black polyester thermoplastic insulator, it supports a wide operating temperature range of -40°C to +105°C. Designed for through-hole termination, this component provides robust mechanical stability for board-to-board or backplane connections.

Edgeboard Connectors Feature Summary

• Dual female configuration with half-bevel contacts for secure mating
• Gold-plated copper alloy terminals ensuring corrosion resistance
• Thermoplastic polyester insulation for thermal stability
• Through-hole mounting for reliable PCB integration

Edgeboard Connectors Applications

• Industrial control systems requiring durable interconnects
• Telecommunications equipment backplanes
• Test and measurement instrumentation boards
• Automotive electronic modules

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix against the manufacturer's official datasheet to confirm pin count, plating thickness, and flange style. Ensure compatibility with the target PCB stack-up dimensions and card edge thickness specifications before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this connector when a standard 0.100-inch pitch dual-row interface is required. Consider the 38-position count and through-hole termination method. Verify that the operating temperature range meets the environmental requirements of the intended application zone.

Edgeboard Connectors Part Context

This component belongs to the EDAC 391 series, which specializes in standard card edge connectors. The series offers various position counts and termination styles, providing engineers with standardized solutions for modular electronic assemblies and expansion slot interfaces.

Edgeboard Connectors Replacement Considerations

Consult the EDAC 391 Series Ordering Guide for direct substitutes with different pin counts or termination types. Cross-reference compatible parts from other manufacturers only if mechanical footprint and electrical ratings are identical.
