392-022-524-102

Edgeboard Connectors Overview

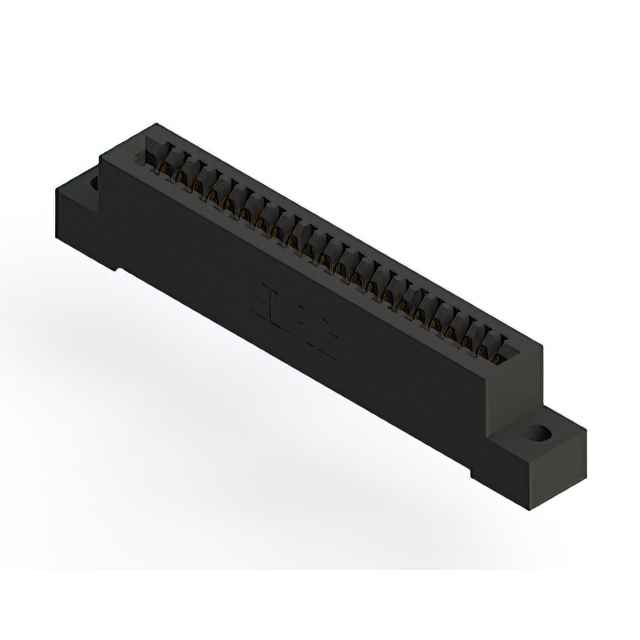

The EDAC Inc. 392-022-524-102 is a single-row card edge connector featuring 22 positions with a 0.100-inch (2.54mm) contact spacing. It utilizes gold-plated copper alloy contacts and a black thermoplastic polyester insulator. Designed for non-specified single-edge PCBs with thicknesses between 0.054 and 0.070 inches, it supports vertical panel mounting via solder pin termination.

Edgeboard Connectors Feature Summary

• Single row configuration with 22 female contacts
• Gold-plated copper alloy terminals for reliable conductivity
• Vertical panel mount design with solder pin termination
• Compatible with standard single-edge printed circuit boards

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Medical equipment internal signal routing
• Agricultural technology hardware connections
• General electronic module interface applications

Edgeboard Connectors Procurement Notes

Verify the specific ordering suffix to confirm contact finish and insulation material properties. Ensure the target PCB thickness falls within the specified 0.054 to 0.070 inch range for proper mechanical engagement. Confirm that the application environment remains within the operational temperature limits defined in the official datasheet to maintain performance integrity.

Edgeboard Connectors Selection Notes

Select this component when a single-row, high-profile connector is required for vertical panel installation. The 0.100-inch pitch suits general-purpose board-to-board or board-to-backplane interfaces. Consider the thermoplastic polyester housing for durability and the gold plating for corrosion resistance in standard operating conditions.

Edgeboard Connectors Part Context

This part belongs to the EDAC 392 series of standard card edge connectors. The series offers various position counts and row configurations. The 392-022-524-102 specifically addresses needs for 22-position single-edge connections with vertical mounting capabilities, fitting into broader industrial and commercial interconnect portfolios.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 392 series variants for different position counts. Verify compatibility with existing PCB layouts before substituting. No direct public substitute part numbers are confirmed in the provided documentation.
