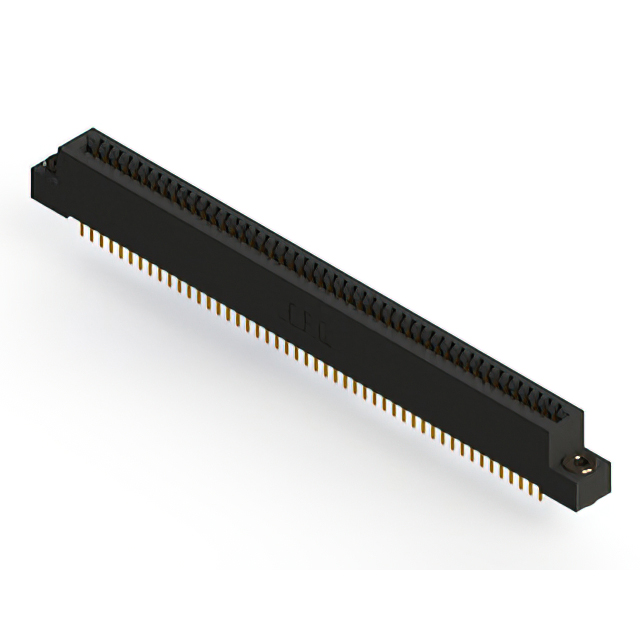

392-096-521-203

$13.89

Description：CONN EDGE DUAL FMALE 96POS 0.100
Series：392
Mfr：EDAC Inc.
Package：Box

SKU:2ba2347897e2 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

392-096-521-203 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE DUAL FMALE 96POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 392-096-521-203

Description：CONN EDGE DUAL FMALE 96POS 0.100
Series：392
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Dual Edge
Gender：Female
Number of Positions/Bay/Row：48
Number of Positions：96
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：2
Pitch：0.100" (2.54mm)
Read Out：Dual
Features：-
Mounting Type：Through Hole
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Black
Flange Feature：Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 392-096-521-203

392-096-521-203

Edgeboard Connectors Overview

The EDAC Inc. 392-096-521-203 is a dual female card edge connector from the 392 series, designed for vertical panel mount applications. It features 96 positions with a 0.100-inch (2.54 mm) contact spacing and utilizes gold-plated copper alloy contacts. The connector supports PCB thicknesses of 0.054 to 0.070 inches and operates within a temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

Dual row configuration for high-density signal routing
Gold-plated contacts ensure reliable conductivity
Vertical panel mount design for secure installation

Edgeboard Connectors Applications

Industrial control systems requiring robust interconnects
Telecommunications equipment backplanes
Medical device circuit boards

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact plating thickness and material variants. Ensure compatibility with target PCB stack-up dimensions before procurement. Cross-reference lead times with authorized distributors as manufacturing schedules may vary.

Edgeboard Connectors Selection Notes

Select this component when dual-row connectivity is required with standard 0.100-inch spacing. Confirm that the housing material and thermal ratings meet the environmental demands of the target application. Validate mechanical fit within the enclosure constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 392 series of standard card edge connectors. The series offers various position counts and row configurations to support diverse electronic assembly needs. The 392-096 variant specifically addresses requirements for higher pin counts in dual-row formats.
