39291167

Headers, Male Pins Overview

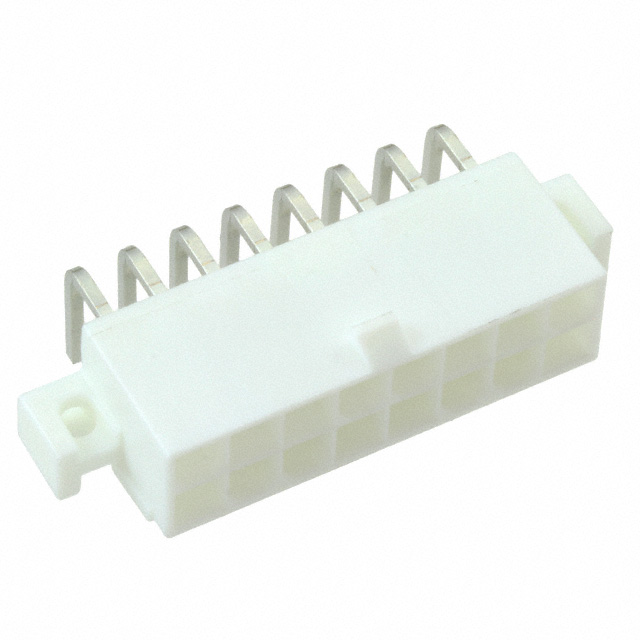

The Molex part number 39291167 is a wire-to-board connector header belonging to the Mini-Fit Jr. series. It features a 16-position configuration with male pin contacts designed for through-hole mounting. The connector utilizes a right-angle orientation, allowing for perpendicular board attachment. The contact pitch is specified as 0.165 inches (4.20 mm). Rated current capacity is 6 Amperes. This component facilitates secure electrical connections between cables and printed circuit boards in various electronic assemblies.

Headers, Male Pins Feature Summary

• Right-angle through-hole mounting design
• 16-position male pin contact array
• Mini-Fit Jr. series compatibility

Headers, Male Pins Applications

• Wire-to-board interconnects
• Printed circuit board assembly
• Electronic equipment signal routing

Headers, Male Pins Procurement Notes

Verify the specific suffix codes against official Molex documentation to ensure correct housing and contact configurations. Confirm that the ordered item matches the required right-angle orientation and 16-pin count. Cross-reference the datasheet for precise mechanical dimensions and plating specifications before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a right-angle connection is required for space-constrained PCB layouts. Ensure the mating cable harness utilizes compatible Mini-Fit Jr. housings. Verify that the 6A current rating meets the application's power requirements. Check that the 4.20mm pitch aligns with the target board footprint.

Headers, Male Pins Part Context

This connector is part of the widely used Mini-Fit Jr. family, known for reliable performance in general-purpose applications. It serves as a standard interface solution for connecting wires to rigid circuit boards. The right-angle form factor provides flexibility in system integration where linear spacing is limited.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 16-pin count, 4.20mm pitch, and right-angle through-hole specification. Generic equivalents may vary in material durability or current rating. Consult Molex cross-reference guides for verified alternative part numbers within the same series.
