395-007-524-478

Edgeboard Connectors Overview

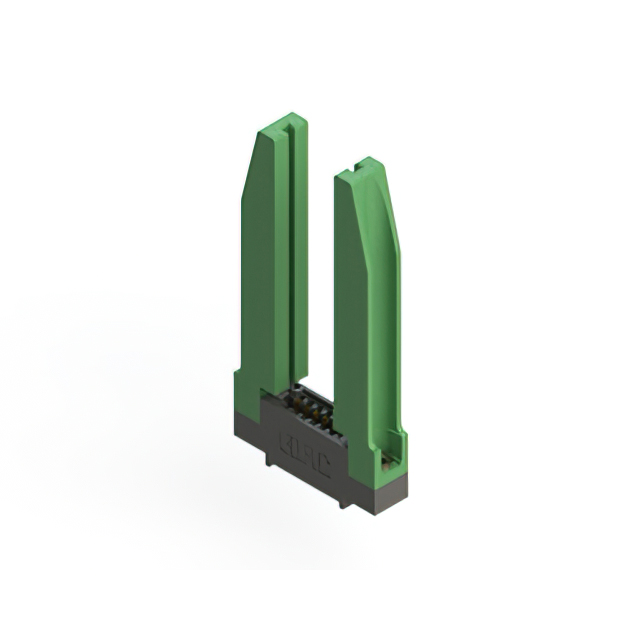

The EDAC Inc. 395-007-524-478 is a single-row card edge connector designed for through-hole mounting. It features seven positions with a 0.100-inch (2.54mm) pitch and accepts board thicknesses ranging from 0.054 to 0.070 inches. The connector utilizes female, cantilever contacts made of copper alloy with a gold plating finish. It is constructed with a black thermoplastic polyester insulator and supports a wide operating temperature range from -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Single-sided female contact configuration for standard card edge applications
• Through-hole termination method ensures secure PCB attachment
• Gold-plated cantilever contacts provide reliable signal transmission
• Thermoplastic polyester insulation offers durability across extreme temperatures

Edgeboard Connectors Applications

• Industrial control system interface connections
• Communication equipment backplane interconnects
• Automotive electronic module integration
• Medical device circuit board assembly

Edgeboard Connectors Procurement Notes

Verify the specific part number against official manufacturer documentation to ensure compatibility with target board specifications. Confirm that the required contact count and pitch align precisely with design requirements. Check RoHS compliance status if environmental regulations apply to the end product. Ensure sourcing channels are authorized to guarantee component authenticity and traceability.

Edgeboard Connectors Selection Notes

Select this component when a low-profile, single-row connection is required for boards within the specified thickness tolerance. Consider the through-hole mounting style for robust mechanical stability in high-vibration environments. Evaluate the thermal rating to ensure it meets operational demands. Compare against other series members if different pin counts or termination styles are needed.

Edgeboard Connectors Part Context

This component belongs to the EDAC 395 series of standard card edge connectors. The series provides various position options and termination styles for diverse electronic interconnect needs. The 395-007 variant specifically addresses applications requiring a compact seven-position interface with reliable electrical performance.

Edgeboard Connectors FAQ

What is the maximum operating temperature for this connector?

The connector is rated for an operating temperature range of -40°C to 105°C.

Does this connector support double-sided cards?

No, this is a single-sided connector designed for one-sided card edge interfaces.
