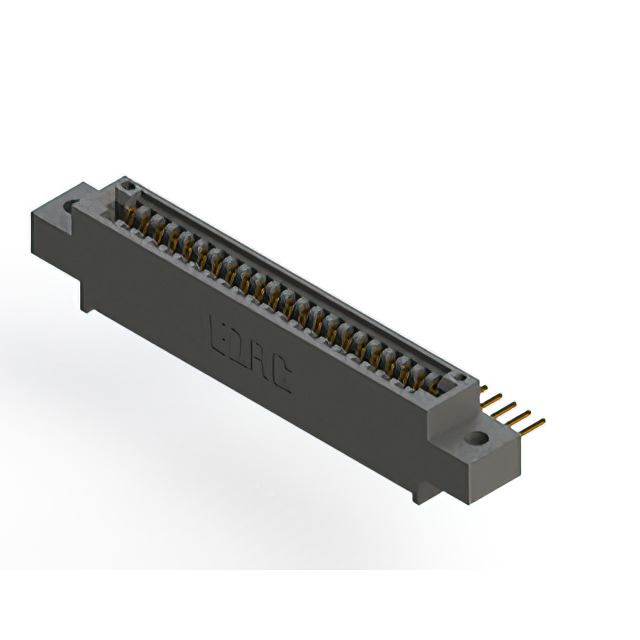

395-022-559-602

$9.57

Description：CONN EDGE SINGLE FML 22POS 0.100
Series：395
Mfr：EDAC Inc.
Package：Box

SKU:c83e41a840e4 Category: Edgeboard Connectors Brand: EDAC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

395-022-559-602 is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists EDAC Inc.. Its product description is CONN EDGE SINGLE FML 22POS 0.100. Review the specifications below when checking this part for your BOM.

Edgeboard Connectors specifications for 395-022-559-602

Description：CONN EDGE SINGLE FML 22POS 0.100
Series：395
Mfr：EDAC Inc.
Package：Box
Card Type：Non Specified - Single Edge
Gender：Female
Number of Positions/Bay/Row：22
Number of Positions：22
Card Thickness：0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Number of Rows：1
Pitch：0.100" (2.54mm)
Read Out：Single
Features：-
Mounting Type：Through Hole, Right Angle
Termination：Solder
Contact Material：Copper Alloy
Contact Finish：Gold
Contact Finish Thickness：10.0µin (0.25µm)
Contact Type：Cantilever
Color：Black
Flange Feature：Top Mount Opening, Unthreaded, 0.128" (3.25mm) Dia
Operating Temperature：-40°C ~ 105°C

Edgeboard Connectors datasheet and documents for 395-022-559-602

395-022-559-602

Edgeboard Connectors Overview

The EDAC Inc. 395-022-559-602 is a standard card edge connector designed for vertical panel mounting applications. It features a single row of 22 female contacts with a 0.100-inch (2.54mm) pitch and accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57mm). The component utilizes gold-plated copper alloy contacts housed in a black thermoplastic polyester insulator, ensuring reliable signal transmission within an operating temperature range of -40°C to +105°C.

Edgeboard Connectors Feature Summary

High-profile insulator body construction
Gold-plated contact surfaces
Vertical panel mount configuration

Edgeboard Connectors Applications

Industrial control systems
Telecommunications equipment
Test and measurement devices

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against the manufacturer datasheet to confirm exact contact plating thickness and insulation material properties. Ensure that the selected variant matches the required board thickness tolerance of 0.062 inches. Confirm RoHS compliance status through official documentation prior to final procurement decisions.

Edgeboard Connectors Selection Notes

Select this connector when a single-row interface with a 2.54mm pitch is required for vertical integration. Consider the 22-position count and gold contact finish for durability. Verify compatibility with the target PCB thickness and ensure the panel mounting style aligns with the mechanical design constraints of the enclosure.

Edgeboard Connectors Part Context

This component belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and mounting options, providing modular connectivity solutions for electronic assemblies requiring robust board-to-panel interfaces.

Edgeboard Connectors Replacement Considerations

Consult the official EDAC cross-reference guide for verified substitute part numbers. Do not assume interchangeability based on generic specifications alone.
