395-046-521-807

Edgeboard Connectors Overview

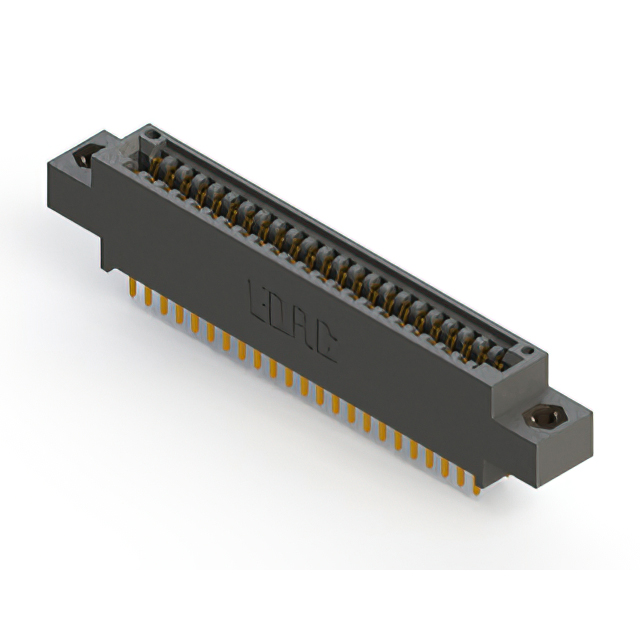

The EDAC Inc. 395-046-521-807 is a standard card edge connector designed for single-sided PCB applications. It features 46 positions with a 0.100-inch (2.54mm) pitch and utilizes female contacts. The connector supports board thicknesses ranging from 0.054 to 0.070 inches (1.37mm to 1.78mm). Contacts are constructed from copper alloy with a gold plating finish, ensuring reliable signal transmission. The housing is made of thermoplastic polyester and is black in color. Designed for through-hole mounting, it operates within a temperature range of -40°C to 105°C.

Edgeboard Connectors Feature Summary

• Single-sided female contact configuration for non-specified card edge boards
• Gold-plated copper alloy contacts with 10.0µin (0.25µm) thickness
• Thermoplastic polyester insulation housing rated for -40°C to 105°C
• Through-hole termination with 0.100 inch (2.54mm) spacing

Edgeboard Connectors Applications

• Industrial control systems requiring robust edge connections
• Communication equipment interface modules
• Consumer electronic device internal interconnects
• Medical instrumentation circuit boards

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact flange and termination variations. Ensure compatibility with target PCB thickness limits of 1.37mm to 1.78mm. Confirm RoHS3 compliance status if required by project specifications. Cross-reference pin count and pitch requirements before finalizing procurement orders.

Edgeboard Connectors Selection Notes

Select this component when a single-sided female connector is required for 46-position interfaces. Verify that the target printed circuit board adheres to the specified thickness range of 0.054 to 0.070 inches. Consider the operating temperature environment to ensure it falls within the -40°C to 105°C operational window. Evaluate mechanical mounting constraints relative to the through-hole termination style.

Edgeboard Connectors Part Context

This part belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and configurations for diverse electronic assembly needs. EDAC specializes in high-reliability interconnect solutions for industrial and commercial sectors. The 395 series is characterized by consistent dimensional tolerances and durable material selection.

Edgeboard Connectors Replacement Considerations

Direct substitutes may include other EDAC 395 series variants with matching 46-position counts and single-sided female configurations. Verify identical pitch, board thickness tolerance, and termination method before substitution. Consult official cross-reference guides for equivalent parts from other manufacturers.
