395-048-525-204

Edgeboard Connectors Overview

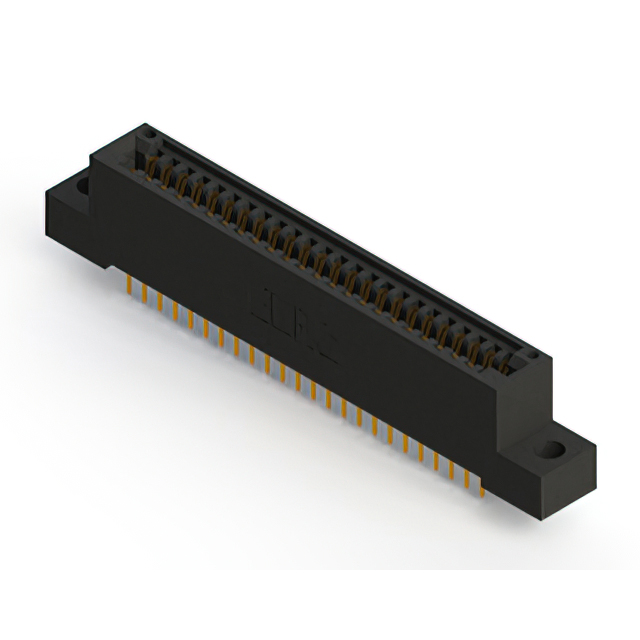

The EDAC Inc. 395-048-525-204 is a card edge connector designed for vertical panel mounting with a 0.100 inch (2.54 mm) pitch. It features 48 positions in a dual female configuration, utilizing gold-plated contacts and a black thermoplastic polyester housing. The unit supports board thicknesses ranging from 0.054 to 0.070 inches (1.37 mm to 1.78 mm). Operating within a temperature range of -40°C to 105°C, it employs a solder pin termination method for secure circuit integration.

Edgeboard Connectors Feature Summary

• Dual-edge female contact design accommodates non-specified cards
• Gold-plated copper alloy contacts ensure reliable signal transmission
• Vertical panel mount style provides structural stability
• Thermoplastic polyester insulation offers thermal resistance

Edgeboard Connectors Applications

• Industrial control systems requiring robust interconnects
• Automotive electronics modules
• Communication equipment backplanes
• Medical device circuit boards
• Research and development prototyping

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact physical dimensions and termination styles. Ensure compatibility with target PCB thickness specifications before procurement. Confirm RoHS compliance status through current manufacturer datasheets. Validate that the dual-edge configuration matches the intended card interface requirements.

Edgeboard Connectors Selection Notes

Select this component when a dual-sided connection is required for vertical panel installations. The 0.100-inch pitch suits standard board layouts. Verify that the operating temperature range meets environmental demands. Consider the gold plating for corrosion resistance in harsh conditions. Ensure the panel mount style aligns with the mechanical assembly constraints.

Edgeboard Connectors Part Context

This part belongs to the EDAC 395 series of standard card edge connectors. The series offers various position counts and configurations for diverse electronic applications. The 395-048 variant specifically addresses needs for moderate density connections. It represents a reliable solution for industrial-grade hardware interfaces.

Edgeboard Connectors Replacement Considerations

Cross-reference with other EDAC 395 series parts for alternative position counts. Verify dimensional compatibility with existing PCB footprints. Check if single-edge variants suffice for simplified designs. Consult manufacturer catalogs for updated series replacements.
