395-064-524-212

Edgeboard Connectors Overview

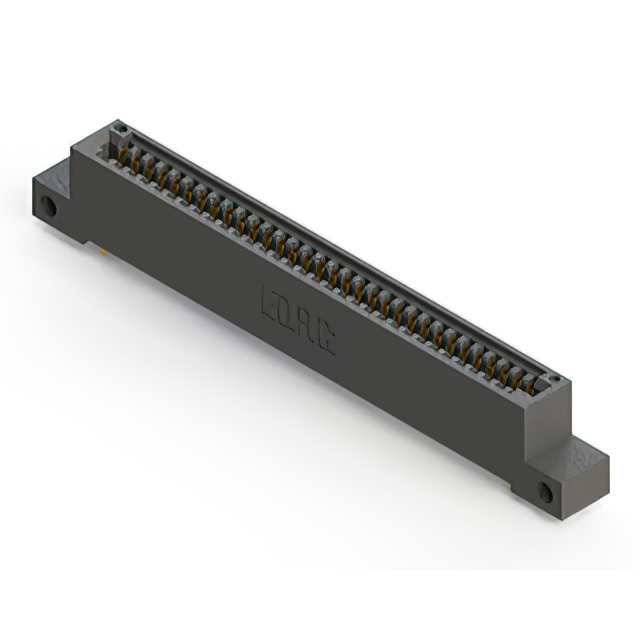

The EDAC Inc. 395-064-524-212 is a standard card edge connector designed for through-hole mounting. It features 64 positions in a dual female configuration with a 0.100 inch (2.54mm) pitch. The contacts are constructed from copper alloy and finished with gold plating to ensure reliable signal transmission. The insulator is black, and the connector supports a board thickness of 1.57mm. This component belongs to the 395 series and is suitable for high-density interconnect applications requiring robust mechanical stability.

Edgeboard Connectors Feature Summary

• Dual-edge female contact configuration for secure board insertion
• Gold-plated copper alloy contacts for corrosion resistance
• Through-hole termination method for stable PCB attachment

Edgeboard Connectors Applications

• Industrial control systems
• Telecommunications equipment
• Automotive electronics modules

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact pin count, plating thickness, and flange options. Ensure compatibility with target PCB stack-up dimensions before procurement. Cross-reference distributor part numbers with manufacturer base numbers to avoid ordering errors related to variant differences.

Edgeboard Connectors Selection Notes

Select this connector when a dual-sided edge interface is required for 64 signals. Confirm that the mating card thickness aligns with the specified 1.57mm tolerance. Evaluate thermal requirements as the operating temperature range must suit the application environment. Compare against single-edge variants if space constraints or signal isolation needs differ.

Edgeboard Connectors Part Context

This component is part of the EDAC 395 series of standard card edge connectors. The series offers various position counts and edge configurations. The 395-064-524-212 specifically addresses the need for dual-edge connectivity with a standard 2.54mm pitch, fitting within the broader category of board-to-board interconnect solutions.

Edgeboard Connectors Replacement Considerations

Check for direct substitutes within the EDAC 395 series that match the 64-position dual-edge specification. Verify that any alternative maintains the same 0.100-inch pitch and through-hole termination style. Ensure mechanical footprint and flange characteristics are identical to prevent PCB layout modifications.
