396-025-558-103

Edgeboard Connectors Overview

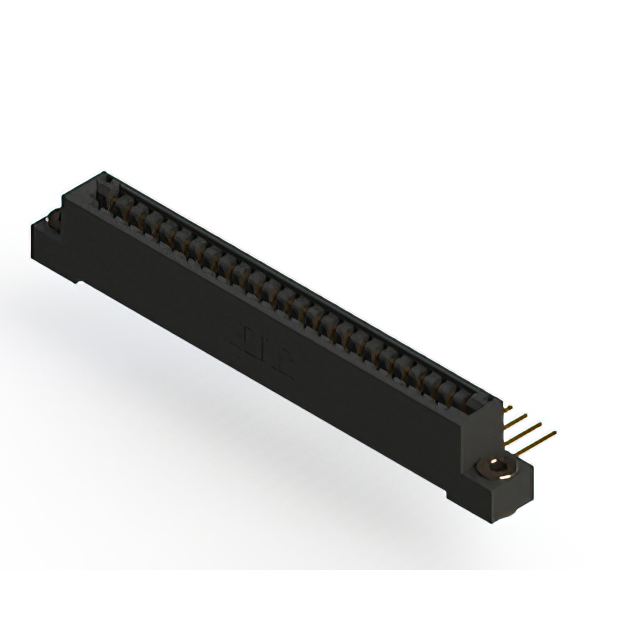

The EDAC Inc. 396-025-558-103 is a standard card edge connector designed for vertical board-to-board or backplane applications. It features 25 positions with a contact spacing of 0.125 inches (3.175 mm) and a row spacing of 0.250 inches (6.35 mm). The connector accepts printed circuit boards with a nominal thickness of 0.062 inches (1.57 mm). Contacts are gold-plated to ensure reliable signal transmission, and the insulator body is black.

Edgeboard Connectors Feature Summary

• Vertical mounting configuration for secure PCB integration
• Gold-plated contacts for enhanced conductivity and corrosion resistance
• High-profile insulator body design

Edgeboard Connectors Applications

• Industrial control systems
• Medical interconnect solutions
• Agricultural technology equipment

Edgeboard Connectors Procurement Notes

Verify the specific suffix codes against official EDAC documentation to confirm exact pin count, plating specifications, and flange configurations. Ensure compatibility with the target PCB thickness of 0.062 inches. Confirm RoHS compliance status through the manufacturer's latest datasheet before finalizing procurement plans.

Edgeboard Connectors Selection Notes

Select this component when a vertical single-edge connector with 25 positions is required. The 3.175 mm pitch suits standard board layouts. Consider the high-profile body for adequate clearance. Verify that the application environment aligns with the connector's rated performance characteristics.

Edgeboard Connectors Part Context

This part belongs to the EDAC 396 series of standard card edge connectors. The series provides various position counts and configurations for diverse electronic assembly needs. The 396-025-558-103 specifically addresses requirements for 25-position vertical connections in compact form factors.

Edgeboard Connectors Replacement Considerations

Cross-reference with EDAC part numbers sharing the same 396 series prefix and identical 25-position vertical specifications. Verify mechanical dimensions and electrical ratings match exactly before substitution.
